Description
Condition:
New

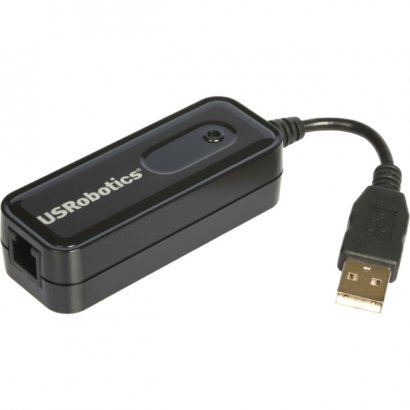

The USRobotics 56K* USB Softmodem delivers the performance and reliability USRobotics is known for in a compact, cost effective form factor. Broadly compatible with Windows including 64 bit and server systems, the modem uses the CPU of the host computer for high compression throughput due to direct parallel access. Features include ring detection and qualification - eliminating unintended wake-on-ring events due to activity on the phone line other than ringing, as well as handling pulse dial control to eliminate system timing dependencies common with soft modems. The USRobotics USB Softmodem is fully compatible with V.92 and lower rates, making it ideal for compact POS solutions that only require V.34.
Number of Modem (RJ-11) Ports |
1
|
Host Interface |
USB
|
Product Type |
Data/Fax Modem
|
Brand Name |
U.S. Robotics
|
Manufacturer |
U.S. Robotics
|
Product Model |
USR5639
|
Product Name |
56K* USB Softmodem
|
Manufacturer Part Number |
USR5639
|
Manufacturer Website Address |
http://www.usr.com
|
Modem Transmission Data Rate |
56 Kbps
|
Green Compliant |
Yes
|
Green Compliance Certificate/Authority |
RoHS
|
Platform Supported |
PC
|
Package Contents |
- 56K* USB Softmodem
- Phone Cord
|
Height |
0.8"
|
Width |
1.2"
|
Depth |
3.1"
|
Form Factor |
Desktop
|
Modulation |
ITU-T V.92
ITU-T V.90
ITU-T V.32
ITU-T V.32bis
ITU-T V.34
|
Fax Technology |
ITU-T V.17
ITU-T V.27ter
ITU-T V.29
ITU-T V.21
|
Limited Warranty |
1 Year
|
Specifications
Interfaces/Ports |
Number of Modem (RJ-11) Ports |
1 |
Host Interface |
USB |
General Information |
Product Type |
Data/Fax Modem |
Brand Name |
U.S. Robotics |
Manufacturer |
U.S. Robotics |
Product Model |
USR5639 |
Product Name |
56K* USB Softmodem |
Manufacturer Part Number |
USR5639 |
Manufacturer Website Address |
http://www.usr.com |
Media & Performance |
Modem Transmission Data Rate |
56 Kbps |
Miscellaneous |
Green Compliant |
Yes |
Green Compliance Certificate/Authority |
RoHS |
Platform Supported |
PC |
Package Contents |
- 56K* USB Softmodem
- Phone Cord
|
Physical Characteristics |
Height |
0.8" |
Width |
1.2" |
Depth |
3.1" |
Form Factor |
Desktop |
Technical Information |
Modulation |
ITU-T V.92 |
Modulation |
ITU-T V.90 |
Modulation |
ITU-T V.32 |
Modulation |
ITU-T V.32bis |
Modulation |
ITU-T V.34 |
Fax Technology |
ITU-T V.17 |
Fax Technology |
ITU-T V.27ter |
Fax Technology |
ITU-T V.29 |
Fax Technology |
ITU-T V.21 |
Warranty |
Limited Warranty |
1 Year |
|
