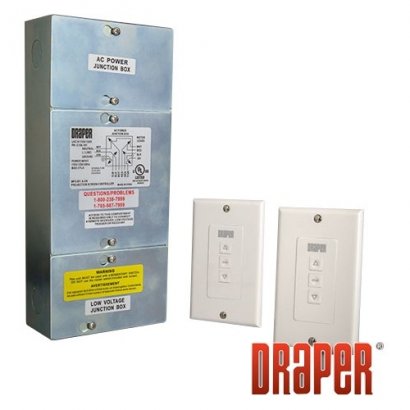

Kit contains one (1) LVC-IV control Module and two (2) LVC-S low voltage switches. The LVC-IV low voltage control is used to control one 115V/220V motor by a third party system in a variety of ways: Low voltage wall switch "dry" contact closure RF (radio frequency) IR (infrared) Serial Communication low voltage relay (3v-28v) Works with LVC-S, WRT, IRT/R, SP-KSM, Aux. "dry" contacts and KS-1 Power Supply Switch. The LVC-IV is housed in a single box, 3-compartment and UL Listed. Two low voltage switches (LVC-S) are included. The module contains a 3-screw terminal block for a low voltage wall switch, an IR receiver jack, a built-in RF receiver, two-RJ25 ports for RS232/RS485, a low voltage relay port with cable and a user-serviceable 3.5 A fuse. The LVC-IV (module only) may be built into Access (Access Fit, Standard Access and Access XL) V & E, Signature V & E, Ultimate Access V & E, Silhouette V & E, Premier, Targa and Envoy. Factory installed controls will increase the length of the case in the Premier and Targa. Call for exact case length if this dimension is critical.
Low Voltage Control with 2 Switches LVC-IV, 2 LVC-S
