Description
Condition:
New
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
| Product Type |
PDU
|
| Brand Name |
APC
|
| Manufacturer |
American Power Conversion Corp
|
| Product Name |

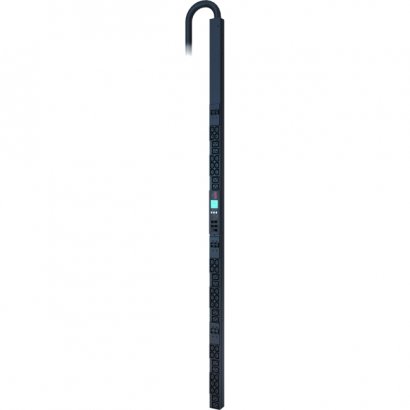

Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
|
| Product Line |
Metered Rack
|
| Manufacturer Part Number |
AP8888
|
| Manufacturer Website Address |
http://www.apc.com
|
| Package Contents |
- Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Serial Configuration Cable
|
| Number of Cord/Cable |
1
|
| Height |
72"
|
| Width |
2.2"
|
| Depth |
2"
|
| Color |
Black
|
| Form Factor |
Rack-mountable
|
| Weight (Approximate) |
22.27 lb
|
| Power Rating |
23 kVA
|
| Input Voltage |
400 V AC
|
| Output Voltage |
240 V AC
|
| Output Receptacles |
30 x IEC 60320 C13
12 x IEC 60320 C19
|
| Protection Type |
Overload Protection
|
| Limited Warranty |
2 Year Limited
|
Specifications
| General Information |
| Product Type |
PDU |
| Brand Name |
APC |
| Manufacturer |
American Power Conversion Corp |
| Product Name |
Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19 |
| Product Line |
Metered Rack |
| Manufacturer Part Number |
AP8888 |
| Manufacturer Website Address |
http://www.apc.com |
| Miscellaneous |
| Package Contents |
- Rack PDU 2G, Metered, ZeroU, 23.0kW, 240V, (30) C13 & (12) C19
- Installation Guide
- Rack Mounting Brackets
- Safety Guide
- Serial Configuration Cable
|
| Physical Characteristics |
| Number of Cord/Cable |
1 |
| Height |
72" |
| Width |
2.2" |
| Depth |
2" |
| Color |
Black |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
22.27 lb |
| Power Description |
| Power Rating |
23 kVA |
| Input Voltage |
400 V AC |
| Output Voltage |
240 V AC |
| Technical Information |
| Output Receptacles |
30 x IEC 60320 C13 |
| Output Receptacles |
12 x IEC 60320 C19 |
| Protection Type |
Overload Protection |
| Warranty |
| Limited Warranty |
2 Year Limited |
|
