Description
Condition:
New

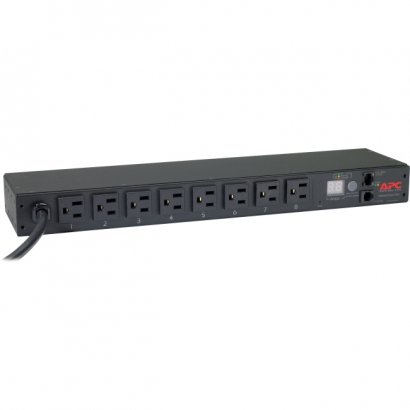

Explore APC Rack Power Distribution in 3D animation.APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
Specifications
General Information Product Type: PDUBrand Name: APC by Schneider ElectricManufacturer: Schneider Electric SAProduct Name: Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15Manufacturer Part Number: AP7800BManufacturer Website Address: http://www.schneider-electric.comMiscellaneous Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: REACHPackage Contents: - Rack PDU, Metered, 1U, 15A, 100/120V, (8) 5-15
- Cord Retention Brackets
- Installation Guide
- Rack Mounting Brackets
- User Manual
Physical Characteristics Height: 1.7"Width: 17.5"Depth: 4"Rack Height: 1UForm Factor: Rack-mountableWeight (Approximate): 3.80 lbTechnical Information Input Receptacles: NEMA 5-15POutput Receptacles: 8 x NEMA 5-15RPower Description Input Current: 15 AInput Voltage: 120 V ACOutput Voltage: 120 V ACWarranty Limited Warranty: 2 Year
|
