Description
Condition:
New

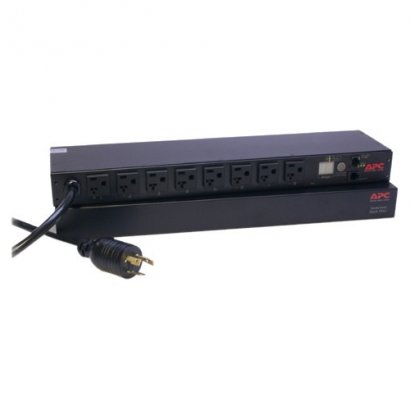

Explore APC Rack Power Distribution in 3D animation.APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
Specifications
General Information Product Type: PDUBrand Name: APC by Schneider ElectricManufacturer: Schneider Electric SAProduct Name: Rack PDU, Switched, 1U, 20A, 120V, (8)5-20Manufacturer Part Number: AP7901BManufacturer Website Address: http://www.schneider-electric.comMiscellaneous Environmentally Friendly: YesEnvironmental Certification: RoHSEnvironmental Certification: REACHPackage Contents: - Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
- Cord Retention Vrackets
- Horizontal Mounting Brackets
- Installation Guide
- User Manual
Interfaces/Ports Network (RJ-45): YesPhysical Characteristics Height: 1.7"Width: 12.3 ftDepth: 4.3"Rack Height: 1UForm Factor: Rack-mountableWeight (Approximate): 5 lbPower Description Power Rating: 2400 VAInput Current: 20 AInput Voltage: 120 V ACOutput Voltage: 120 V ACTechnical Information Input Receptacles: 1 x NEMA L5-20POutput Receptacles: 8 x NEMA 5-20RWarranty Limited Warranty: 2 Year
|
