Description
Condition:
New
Switched Rack Power Distribution Units (PDUs) provide advanced load monitoring combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management.Explore APC Rack Power Distribution in 3D animation.APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' Cord
Specifications

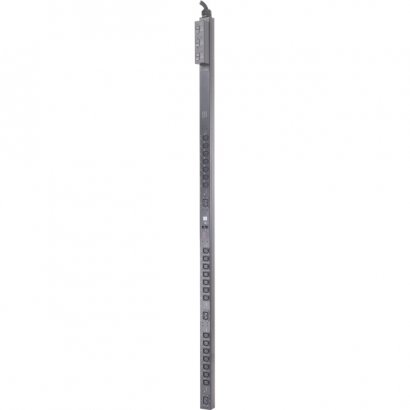

General Information Product Type: PDUBrand Name: APC by Schneider ElectricManufacturer: Schneider Electric SAProduct Name: Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' CordManufacturer Part Number: AP7998BManufacturer Website Address: http://www.schneider-electric.comMiscellaneous Environmentally Friendly: YesEnvironmental Certification: RoHSPackage Contents: - Rack PDU, Switched, Zero U,12.5kW,208V,(21)C13&(3)C19; 10' Cord
- Cord Retention Bracket(s)
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- RS-232 Configuration Cable
- Toolless Mounting Kit
Physical Characteristics Height: 70"Width: 2.2"Depth: 3.5"Rack Height: 0UForm Factor: Rack-mountableWeight (Approximate): 21.28 lbPower Description Power Rating: 12.50 kVAInput Current: 50 AInput Voltage: 208 V ACOutput Voltage: 208 V ACTechnical Information Input Receptacles: CS8365Output Receptacles: 3 x IEC 60320 C19Output Receptacles: 21 x IEC 60320 C13Protection Type: Overload ProtectionWarranty Limited Warranty: 2 Year
|
