Description
Condition:
New

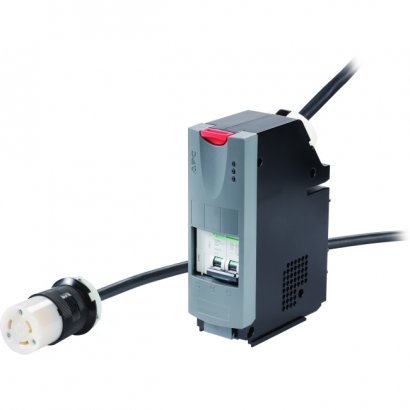

The safest method to bring ultra-high efficiency and scalability to power distribution for demanding, business-critical applicationsAPC Power Distribution Modules simplify both the global deployment of a standard power distribution system and the expansion of existing APC Modular Power Distribution Unit solutions. A variety of breaker and connector options can be chosen to supply either three-phase or single-phase power to the load. Safety features of the Power Distribution Modules include a latch that disconnects the breaker from AC utility power, connectors with positive locking mechanisms, and isolation of all touch points. Built-in monitoring supplies information about the power consumption of connected devices.
| Product Type |
Power Module
|
| Brand Name |
APC
|
| Manufacturer |
American Power Conversion Corp
|
| Product Name |
Power Distribution Module
|
| Manufacturer Part Number |
PDM2330L6-23-740
|
| Manufacturer Website Address |
http://www.apc.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
REACH
|
| Package Contents |
- Power Distribution Module
- Installation Guide
|
| Weight (Approximate) |
9.46 lb
|
| Current |
30 A
|
| Frequency |
60 Hz
|
| Input Voltage |
208 V AC
|
| Output Voltage |
208 V AC
|
| Receptacles |
1 x NEMA L6-30R
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
Power Module |
| Brand Name |
APC |
| Manufacturer |
American Power Conversion Corp |
| Product Name |
Power Distribution Module |
| Manufacturer Part Number |
PDM2330L6-23-740 |
| Manufacturer Website Address |
http://www.apc.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Green Compliance Certificate/Authority |
REACH |
| Package Contents |
- Power Distribution Module
- Installation Guide
|
| Physical Characteristics |
| Weight (Approximate) |
9.46 lb |
| Power Description |
| Current |
30 A |
| Frequency |
60 Hz |
| Input Voltage |
208 V AC |
| Output Voltage |
208 V AC |
| Technical Information |
| Receptacles |
1 x NEMA L6-30R |
| Warranty |
| Limited Warranty |
1 Year |
|
