Description
Condition:
New

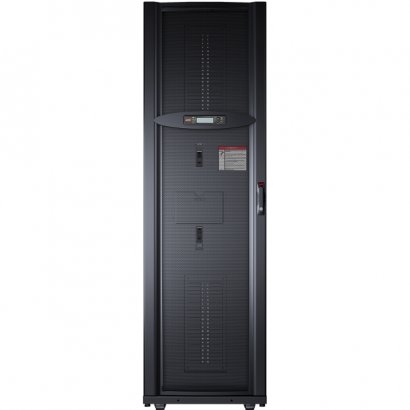

The easy-to-deploy PDU for data centers with custom requirementsThe APC Configurable Power Distribution Units bring agility, availability, and speed of deployment to your data center. Our factory-tested power distribution solutions are built to your exact specifications, support overhead or underfloor distribution, and feature a convenient, portable rack form factor. Install factory assembled and tested power distribution solutions fast and faultlessly Control cable clutter with cut-to-size cord sets for your site-specific, custom-designed breakers and connectors Reduce operating costs with NEMA-rated TP1 transformers - the most efficient in the industry Perform maintenance and service from the front or rear - no side access required Monitor and manage power usage locally at the PowerView display interface or remotely using a Web browser, StruxureWare Data Center Expert, or your building management system
| Product Type |
PDU
|
| Brand Name |
APC
|
| Manufacturer |
American Power Conversion Corp
|
| Product Name |
InfraStruxure PDU
|
| Product Line |
InfraStruXure
|
| Manufacturer Part Number |
PDPB150G6F
|
| Manufacturer Website Address |
http://www.apc.com
|
| Package Contents |
- InfraStruxure PDU
- Installation Guide
- Network Management Card
|
| Height |
78.7"
|
| Width |
23.6"
|
| Depth |
42.1"
|
| Weight (Approximate) |
1800 lb
|
| Power Rating |
150 kVA
|
| Input Voltage |
480 V AC
|
| Output Voltage |
208 V AC
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
PDU |
| Brand Name |
APC |
| Manufacturer |
American Power Conversion Corp |
| Product Name |
InfraStruxure PDU |
| Product Line |
InfraStruXure |
| Manufacturer Part Number |
PDPB150G6F |
| Manufacturer Website Address |
http://www.apc.com |
| Miscellaneous |
| Package Contents |
- InfraStruxure PDU
- Installation Guide
- Network Management Card
|
| Physical Characteristics |
| Height |
78.7" |
| Width |
23.6" |
| Depth |
42.1" |
| Weight (Approximate) |
1800 lb |
| Power Description |
| Power Rating |
150 kVA |
| Input Voltage |
480 V AC |
| Output Voltage |
208 V AC |
| Warranty |
| Limited Warranty |
1 Year |
|
