Description
Condition:
New

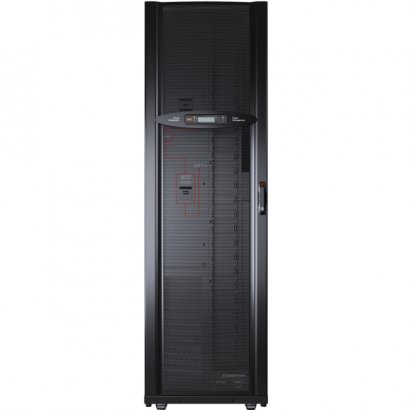

Scalable and efficient 3-phase power distribution. Modular Power Distribution mitigates the need to predict the future requirements and configurations of your data center. This visionary power distribution system is agile enough to match the needs of your data center today and enable rapid expansion or reconfiguration in the future. Power management is simplified by output metering, branch current/circuit monitoring and auto-detection by the StruxureWare suite of management options. When demand rises and expansion becomes necessary, simply plug in new Power Distribution Modules. The factory-assembled modules, which include circuit breaker, power cord, and power connection, can be installed in mere minutes. There are multiple power ratings and power cord lengths for low to high power, guaranteeing compatibility and quick, easy, and convenient installation.
| Product Type |
PDU
|
| Product Series |
Modular
|
| Brand Name |
APC
|
| Manufacturer |
American Power Conversion Corp
|
| Product Name |
Modular 175kVA PDU
|
| Manufacturer Part Number |
PDPM175G6H
|
| Manufacturer Website Address |
http://www.apc.com
|
| Package Contents |
- Modular 175kVA PDU
- Installation Guide
- Network Management Card
|
| Height |
79"
|
| Width |
23.6"
|
| Depth |
42.1"
|
| Weight (Approximate) |
2074.55 lb
|
| Power Rating |
175 kVA
|
| Input Voltage |
480 V AC
|
| Output Voltage |
415 V AC
|
| Protection Type |
Overload Protection
|
| Limited Warranty |
1 Year
|
Specifications
| General Information |
| Product Type |
PDU |
| Product Series |
Modular |
| Brand Name |
APC |
| Manufacturer |
American Power Conversion Corp |
| Product Name |
Modular 175kVA PDU |
| Manufacturer Part Number |
PDPM175G6H |
| Manufacturer Website Address |
http://www.apc.com |
| Miscellaneous |
| Package Contents |
- Modular 175kVA PDU
- Installation Guide
- Network Management Card
|
| Physical Characteristics |
| Height |
79" |
| Width |
23.6" |
| Depth |
42.1" |
| Weight (Approximate) |
2074.55 lb |
| Power Description |
| Power Rating |
175 kVA |
| Input Voltage |
480 V AC |
| Output Voltage |
415 V AC |
| Technical Information |
| Protection Type |
Overload Protection |
| Warranty |
| Limited Warranty |
1 Year |
|
