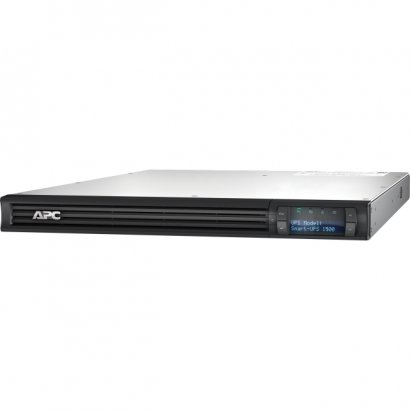

APC Smart-UPS 1500VA LCD RM 1U 230V SMT1500RMI1U

APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Product Type	Line-interactive UPS
Brand Name	Schneider Electric
Manufacturer	American Power Conversion Corp
Product Name	Smart-UPS 1500VA LCD RM 1U 230V
Product Line	Smart-UPS
Manufacturer Part Number	SMT1500RMI1U
Manufacturer Website Address	http://www.apc.com
Maximum Battery Recharge Time	4 Hour
Backup/Run Time (Half Load)	17 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Sealed Lead Acid
USB	Yes
Network (RJ-45)	Yes
Serial Port	Yes
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1000 W
Input Voltage	220 V AC
Output Voltage	230 V AC
Height	1.7"
Width	17"
Depth	26.2"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	53.11 lb
Receptacles	4 x IEC 60320 C13 2 x IEC Jumper
Plug/Connector Type	IEC 60320 C14
Protection Type	Surge Spike Lightning
Package Contents	Smart-UPS 1500VA LCD RM 1U 230V CD with Software Documentation CD Installation Guide Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Warranty Card
Limited Warranty	3 Year

General Information
Product Type	Line-interactive UPS
Brand Name	Schneider Electric
Manufacturer	American Power Conversion Corp
Product Name	Smart-UPS 1500VA LCD RM 1U 230V
Product Line	Smart-UPS
Manufacturer Part Number	SMT1500RMI1U
Manufacturer Website Address	http://www.apc.com
Battery Information
Maximum Battery Recharge Time	4 Hour
Backup/Run Time (Half Load)	17 Minute
Backup/Run Time (Full Load)	5 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Sealed Lead Acid
Interfaces/Ports
USB	Yes
Network (RJ-45)	Yes
Serial Port	Yes
Power Description
Load Capacity (VA)	1500 VA
Load Capacity (Watt)	1000 W
Input Voltage	220 V AC
Output Voltage	230 V AC
Physical Characteristics
Height	1.7"
Width	17"
Depth	26.2"
Rack Height	1U
Form Factor	Rack-mountable
Weight (Approximate)	53.11 lb
Technical Information
Receptacles	4 x IEC 60320 C13
Receptacles	2 x IEC Jumper
Plug/Connector Type	IEC 60320 C14
Protection Type	Surge
Protection Type	Spike
Protection Type	Lightning
Miscellaneous
Package Contents	Smart-UPS 1500VA LCD RM 1U 230V CD with Software Documentation CD Installation Guide Rack Mounting Support Rails Smart UPS Signaling RS-232 Cable USB Cable Warranty Card
Warranty
Limited Warranty	3 Year
