Description
Condition:
New

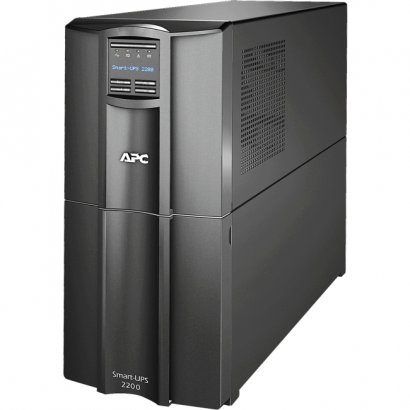

Over 20 million units sold - the UPS you can trustAPC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data networks. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
| Product Type |
Line-interactive UPS
|
| Brand Name |
APC
|
| Manufacturer |
American Power Conversion Corp
|
| Product Name |
Smart-UPS 2200VA LCD 120V US
|
| Product Line |
Smart-UPS
|
| Manufacturer Part Number |
SMT2200US
|
| Manufacturer Website Address |
http://www.apc.com
|
| Maximum Battery Recharge Time |
3 Hour
|
| Backup/Run Time (Half Load) |
22 Minute
|
| Backup/Run Time (Full Load) |
8 Minute
|
| Battery Characteristics |
Spill-proof, Maintenance-free
|
| Battery Chemistry |
Sealed Lead Acid
|
| USB |
Yes
|
| Load Capacity (VA) |
2200 VA
|
| Load Capacity (Watt) |
1980 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
120 V AC
|
| Height |
17"
|
| Width |
7.7"
|
| Depth |
21.4"
|
| Form Factor |
Tower
|
| Weight (Approximate) |
112.24 lb
|
| Receptacles |
8 x NEMA 5-15R
2 x NEMA 5-20R
|
| Plug/Connector Type |
NEMA 5-20P
|
| Package Contents |
- Smart-UPS 2200VA LCD 120V US
- CD with Software
- Documentation CD
- Smart UPS Signalling RS-232 Cable
- USB Cable
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
Line-interactive UPS |
| Brand Name |
APC |
| Manufacturer |
American Power Conversion Corp |
| Product Name |
Smart-UPS 2200VA LCD 120V US |
| Product Line |
Smart-UPS |
| Manufacturer Part Number |
SMT2200US |
| Manufacturer Website Address |
http://www.apc.com |
| Battery Information |
| Maximum Battery Recharge Time |
3 Hour |
| Backup/Run Time (Half Load) |
22 Minute |
| Backup/Run Time (Full Load) |
8 Minute |
| Battery Characteristics |
Spill-proof, Maintenance-free |
| Battery Chemistry |
Sealed Lead Acid |
| Interfaces/Ports |
| USB |
Yes |
| Power Description |
| Load Capacity (VA) |
2200 VA |
| Load Capacity (Watt) |
1980 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
17" |
| Width |
7.7" |
| Depth |
21.4" |
| Form Factor |
Tower |
| Weight (Approximate) |
112.24 lb |
| Technical Information |
| Receptacles |
8 x NEMA 5-15R |
| Receptacles |
2 x NEMA 5-20R |
| Plug/Connector Type |
NEMA 5-20P |
| Miscellaneous |
| Package Contents |
- Smart-UPS 2200VA LCD 120V US
- CD with Software
- Documentation CD
- Smart UPS Signalling RS-232 Cable
- USB Cable
|
| Warranty |
| Limited Warranty |
3 Year |
|
