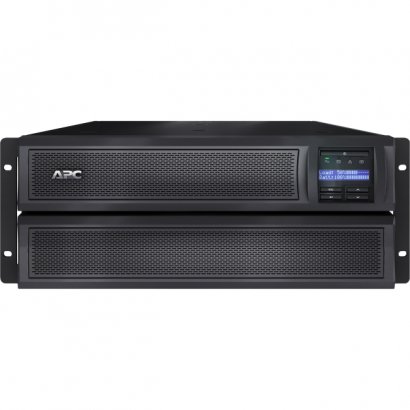

APC Smart-UPS X 3000VA Rack/Tower LCD 100-127V SMX3000LV

Over 20 million units sold - the UPS you can trustAPC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.

Product Type	Line-interactive UPS
Brand Name	APC
Manufacturer	American Power Conversion Corp
Product Name	Smart-UPS X 3000VA Rack/Tower LCD 100-127V
Product Line	Smart-UPS
Manufacturer Part Number	SMX3000LV
Manufacturer Website Address	http://www.apc.com
Maximum Battery Recharge Time	3 Hour
Number of Batteries	1
Backup/Run Time (Half Load)	18 Minute
Backup/Run Time (Full Load)	6 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Sealed Lead Acid
USB	Yes
Load Capacity (VA)	3000 VA
Load Capacity (Watt)	2700 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Height	17"
Width	7"
Depth	19"
Rack Height	4U
Form Factor	Tower/Rack Mountable
Weight (Approximate)	85.19 lb
Receptacles	3 x NEMA 5-20R 1 x NEMA L5-30R 6 x NEMA 5-15R
Plug/Connector Type	NEMA L5-30P
Package Contents	Smart-UPS X 3000VA Rack/Tower LCD 100-127V CD with Software Documentation CD Installation Guide Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart UPS Signalling RS-232 Cable USB Cable
Limited Warranty	3 Year

General Information
Product Type	Line-interactive UPS
Brand Name	APC
Manufacturer	American Power Conversion Corp
Product Name	Smart-UPS X 3000VA Rack/Tower LCD 100-127V
Product Line	Smart-UPS
Manufacturer Part Number	SMX3000LV
Manufacturer Website Address	http://www.apc.com
Battery Information
Maximum Battery Recharge Time	3 Hour
Number of Batteries	1
Backup/Run Time (Half Load)	18 Minute
Backup/Run Time (Full Load)	6 Minute
Battery Characteristics	Spill-proof, Maintenance-free
Battery Chemistry	Sealed Lead Acid
Interfaces/Ports
USB	Yes
Power Description
Load Capacity (VA)	3000 VA
Load Capacity (Watt)	2700 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Physical Characteristics
Height	17"
Width	7"
Depth	19"
Rack Height	4U
Form Factor	Tower/Rack Mountable
Weight (Approximate)	85.19 lb
Technical Information
Receptacles	3 x NEMA 5-20R
Receptacles	1 x NEMA L5-30R
Receptacles	6 x NEMA 5-15R
Plug/Connector Type	NEMA L5-30P
Miscellaneous
Package Contents	Smart-UPS X 3000VA Rack/Tower LCD 100-127V CD with Software Documentation CD Installation Guide Rack Mounting Brackets Rack Mounting Hardware Rack Mounting Support Rails Removable Support Feet Smart UPS Signalling RS-232 Cable USB Cable
Warranty
Limited Warranty	3 Year
