Description
Condition:
New
Over 20 million units sold - the UPS you can trustAPC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
| Product Type |
Line-interactive UPS
|
| Brand Name |
APC
|
| Manufacturer |
American Power Conversion Corp
|
| Product Name |

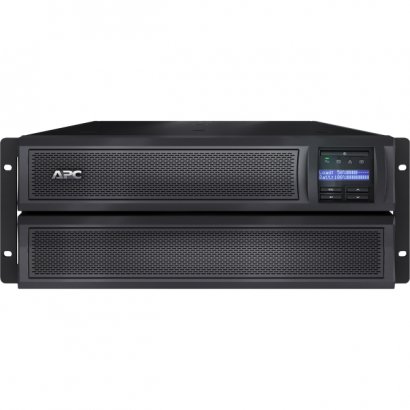

Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
|
| Product Line |
Smart-UPS
|
| Manufacturer Part Number |
SMX3000LVNC
|
| Manufacturer Website Address |
http://www.apc.com
|
| Maximum Battery Recharge Time |
3 Hour
|
| Number of Batteries |
1
|
| Backup/Run Time (Half Load) |
18 Minute
|
| Backup/Run Time (Full Load) |
6 Minute
|
| Battery Characteristics |
Spill-proof, Maintenance-free
|
| Battery Chemistry |
Sealed Lead Acid
|
| USB |
Yes
|
| Serial Port |
Yes
|
| Load Capacity (VA) |
3000 VA
|
| Load Capacity (Watt) |
2700 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
120 V AC
|
| Height |
17"
|
| Width |
7"
|
| Depth |
19"
|
| Rack Height |
4U
|
| Form Factor |
Tower/Rack Mountable
|
| Weight (Approximate) |
85.19 lb
|
| Receptacles |
3 x NEMA 5-20R
3 x NEMA L5-30R
1 x NEMA 5-15R
|
| Plug/Connector Type |
NEMA L5-30P
|
| Network Management |
SNMP Manageable
|
| Package Contents |
- Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Web/SNMP Management Card
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
Line-interactive UPS |
| Brand Name |
APC |
| Manufacturer |
American Power Conversion Corp |
| Product Name |
Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card |
| Product Line |
Smart-UPS |
| Manufacturer Part Number |
SMX3000LVNC |
| Manufacturer Website Address |
http://www.apc.com |
| Battery Information |
| Maximum Battery Recharge Time |
3 Hour |
| Number of Batteries |
1 |
| Backup/Run Time (Half Load) |
18 Minute |
| Backup/Run Time (Full Load) |
6 Minute |
| Battery Characteristics |
Spill-proof, Maintenance-free |
| Battery Chemistry |
Sealed Lead Acid |
| Interfaces/Ports |
| USB |
Yes |
| Serial Port |
Yes |
| Power Description |
| Load Capacity (VA) |
3000 VA |
| Load Capacity (Watt) |
2700 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
17" |
| Width |
7" |
| Depth |
19" |
| Rack Height |
4U |
| Form Factor |
Tower/Rack Mountable |
| Weight (Approximate) |
85.19 lb |
| Technical Information |
| Receptacles |
3 x NEMA 5-20R |
| Receptacles |
3 x NEMA L5-30R |
| Receptacles |
1 x NEMA 5-15R |
| Plug/Connector Type |
NEMA L5-30P |
| Management |
| Network Management |
SNMP Manageable |
| Miscellaneous |
| Package Contents |
- Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Removable Support Feet
- Smart UPS Signalling RS-232 Cable
- USB Cable
- Web/SNMP Management Card
|
| Warranty |
| Limited Warranty |
3 Year |
|
