General Information
Product Type:
Barebone SystemBrand Name:
AsusManufacturer:
ASUS Computer InternationalProduct Model:

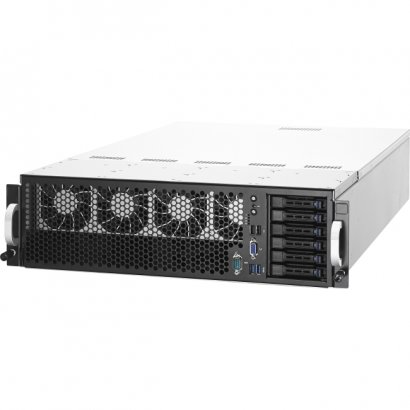

ESC8000 G3Product Name:
ESC8000 G3 Barebone SystemManufacturer Part Number:
ESC8000 G3Manufacturer Website Address:
http://usa.asus.comMiscellaneous
Green Compliant:
YesGreen Compliance Certificate/Authority:
RoHSProcessor & Chipset
64-bit Processing:
YesChipset Manufacturer:
IntelChipset Model:
C612Number of Processors Supported:
2Processor Socket:
Socket R3 (LGA2011-3)Processor Supported:
XeonDisplay & Graphics
Graphics Controller Manufacturer:
ASPEEDGraphics Controller Model:
AST2400Graphics Memory Capacity:
32 MBInterfaces/Ports
Number of SATA Interfaces:
6Total Number of USB Ports:
4Number of USB 3.0 Ports:
2Power Description
Number of Power Supplies Installed:
3Maximum Power Supply Wattage:
1.60 kWI/O Expansions
Number of Internal 2.5" Bays:
6Number of Total Expansion Bays:
6Number of Total Expansion Slots:
10Number of PCI Express x8 Slots:
1Number of PCI Express x16 Slots:
9Memory
Number of Total Memory Slots:
24Memory Standard:
DDR4-2133/PC4-17000Memory Technology:
DDR4 SDRAMMaximum Memory:
1.50 TBControllers
RAID Supported:
YesController Type:
Serial ATA/600Network & Communication
Ethernet Technology:
Gigabit EthernetPhysical Characteristics
Height:
5.1"Width:
17.6"Depth:
29.9"Rack Height:
3UForm Factor:
Rack-mountableWeight (Approximate):
64.37 lbSoftware
Operating System Supported:
Windows Server 2012 R2Operating System Supported:
Windows Server 2012Operating System Supported:
Windows Server 2008 R2 EnterpriseOperating System Supported:
Red Hat Enterprise LinuxOperating System Supported:
SuSE Linux Enterprise ServerOperating System Supported:
CentOSOperating System Supported:
Ubuntu Linux
