General Information
Product Type:
Desktop MotherboardBrand Name:
AsusManufacturer:
ASUS Computer InternationalProduct Model:
Q87T/CSMProduct Name:

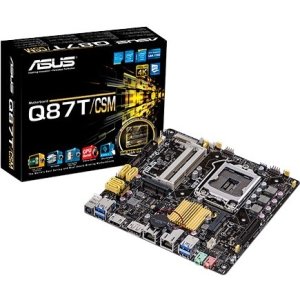

Q87T/CSM Desktop MotherboardManufacturer Part Number:
Q87T/CSMManufacturer Website Address:
http://usa.asus.comMiscellaneous
Green Compliant:
YesGreen Compliance Certificate/Authority:
RoHSGreen Compliance Certificate/Authority:
WEEEPackage Contents:
- Q87T/CSM Desktop Motherboard
- Support Disc
- User's Manual
- I/O Shield
- Thin Mini ITX I/O Shield
- 1 x SATA Power Cable
- 2 x SATA 6Gb/s Cable(s)
Processor & Chipset
Chipset Manufacturer:
IntelChipset Model:
Q87 ExpressProcessor Socket:
Socket H3 LGA-1150Processor Supported:
Core i7Processor Supported:
Core i5Processor Supported:
Core i3Processor Supported:
PentiumProcessor Supported:
CeleronTotal Processor Supported:
1Memory
Number of Memory Slots:
2Memory Form Factor:
SoDIMMMemory Speed Supported:
1.60 GHzMemory Speed Supported:
1.33 GHzMemory Speed Supported:
1.07 GHzMemory Technology:
DDR3 SDRAMMaximum Memory:
16 GBVideo
Graphics Controller Manufacturer:
IntelOnboard Video:
On-board Video ChipsetAudio
Audio Channels:
7.1Network & Communication
Gigabit Ethernet:
YesOnboard Interfaces
Number of SATA Interfaces:
4Total Number of Onboard USB Ports:
7Number of Onboard USB 3.0 Ports:
2Number of mSATA Interfaces:
1I/O Expansions
Number of PCI Express x1 Slots:
1Number of Total Expansion Slots:
3Total Number of PCI Express Slots:
1I/O Controller
RAID Supported:
YesRAID Levels:
0RAID Levels:
1RAID Levels:
5RAID Levels:
1+0Controller Type:
Serial ATA/600Controller Type:
mSATAInterfaces/Ports
HDMI:
YesDisplayPort:
YesTotal Number of USB Ports:
4Number of USB 3.0 Ports:
4Physical Characteristics
Width:
6.7"Depth:
6.7"Form Factor:
Mini ITX
