Description
Condition:
New

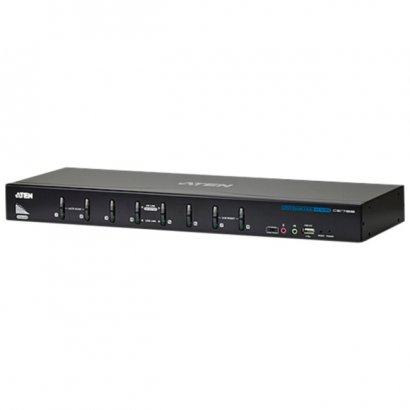

The CS1788 8-Port USB DVI Dual Link KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 computers from a single USB keyboard, USB mouse, and dual-monitor (DVI-I and VGA) console.It can be cascaded to three levels - allowing up to 73 CS1788s to control up to 512 computers - all from the original single console, making it ideal for IT applications and management.In addition, the CS1788 features Multi-view functionality, which enables the use of standard USB cables to stack up to four switches for quad-viewing in multiple-monitor installations where each computer is fitted with multiple video cards. It allows you to contrast, analyse and monitor video output in convenient ways, substantially simplifying the working environment.
| USB |
Yes
|
| DVI |
Yes
|
| Number of USB Ports |
12
|
| Number of DVI Ports |
9
|
| Product Type |
KVM Switchbox
|
| Brand Name |
Aten
|
| Manufacturer |
Aten Technologies
|
| Product Name |
8-Port USB DVI Dual Link KVM Switch
|
| Manufacturer Part Number |
CS1788
|
| Manufacturer Website Address |
http://www.aten-usa.com
|
| Packaged Quantity |
1
|
| Platform Supported |
PC
Mac
Sun
|
| Height |
1.7"
|
| Width |
6.3"
|
| Depth |
17.2"
|
| Weight (Approximate) |
6.17 lb
|
| Number of Computers Supported |
8
|
| Maximum Video Resolution |
2560 x 1600
|
| Graphic Mode |
WQXGA
|
Specifications
| Interfaces/Ports |
| USB |
Yes |
| DVI |
Yes |
| Number of USB Ports |
12 |
| Number of DVI Ports |
9 |
| General Information |
| Product Type |
KVM Switchbox |
| Brand Name |
Aten |
| Manufacturer |
Aten Technologies |
| Product Name |
8-Port USB DVI Dual Link KVM Switch |
| Manufacturer Part Number |
CS1788 |
| Manufacturer Website Address |
http://www.aten-usa.com |
| Packaged Quantity |
1 |
| Miscellaneous |
| Platform Supported |
PC |
| Platform Supported |
Mac |
| Platform Supported |
Sun |
| Physical Characteristics |
| Height |
1.7" |
| Width |
6.3" |
| Depth |
17.2" |
| Weight (Approximate) |
6.17 lb |
| Technical Information |
| Number of Computers Supported |
8 |
| Video |
| Maximum Video Resolution |
2560 x 1600 |
| Graphic Mode |
WQXGA |
|
