Description
Condition:
New

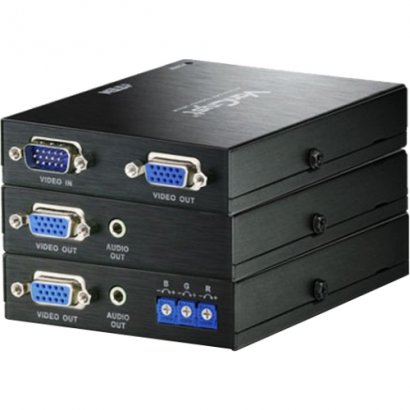

The VE170 A/V Over Cat 5 Extender, comprising of a VE170T Transmitter unit and a VE170R or VE170RQ Receiver unit, is a cost-effective and effi cient solution for sending and receiving high quality audio and video content. Connect the two units using Cat 5e cable and the displays can be located up to 300 m (1000 ft) away from the Transmitter's input source. The VE170R and VE170RQ Receiver units can also be used with the ATEN VS1204T/VS1208T A/V Over Cat 5 Splitter as a transmitter.The VE170RQ features ATEN patented Deskew technology, which supports the manual synchronization of RGB signals and corrects color phase and timing errors that occur over large distances.
| Product Type |
Video Extender
|
| Brand Name |
Aten
|
| Manufacturer |
Aten Technologies
|
| Product Model |
VE170
|
| Product Name |
A/V Over Cat 5 Extender
|
| Product Line |
VanCryst
|
| Manufacturer Part Number |
VE170Q
|
| Manufacturer Website Address |
http://www.aten-usa.com
|
| Graphics Modes |
WUXGA
|
| Maximum Video Resolution |
1920 x 1200
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
WEEE
RoHS
|
| Platform Supported |
PC
|
| Package Contents |
- A/V Over Cat 5 Extender
- 1 x VGA/Audio Cable (1.8 m)
- 2 x Power Adapters
- 1 x Rack Mount Kit (2 pcs)
- 2 x Grounding Wires
- 1 x User Guide
|
| Twisted Pair Cable Standard |
Category 5e
|
| Media Type Supported |
Twisted Pair
|
| Maximum Operating Distance |
984.25 ft
|
| Number of Output Devices Supported |
2
|
| Number of Input Devices Supported |
1
|
| Number of Network (RJ-45) Ports |
2
|
| Network (RJ-45) |
Yes
|
| VGA In |
Yes
|
| Number of VGA Inputs |
1
|
| Height |
0.9"
|
| Width |
3.4"
|
| Form Factor |
Rack-mountable
|
| Length |
4.7"
|
| Weight (Approximate) |
8.82 oz
|
| Input Voltage |
5.3 V DC
|
Specifications
| General Information |
| Product Type |
Video Extender |
| Brand Name |
Aten |
| Manufacturer |
Aten Technologies |
| Product Model |
VE170 |
| Product Name |
A/V Over Cat 5 Extender |
| Product Line |
VanCryst |
| Manufacturer Part Number |
VE170Q |
| Manufacturer Website Address |
http://www.aten-usa.com |
| Video |
| Graphics Modes |
WUXGA |
| Maximum Video Resolution |
1920 x 1200 |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
WEEE |
| Green Compliance Certificate/Authority |
RoHS |
| Platform Supported |
PC |
| Package Contents |
- A/V Over Cat 5 Extender
- 1 x VGA/Audio Cable (1.8 m)
- 2 x Power Adapters
- 1 x Rack Mount Kit (2 pcs)
- 2 x Grounding Wires
- 1 x User Guide
|
| Media & Performance |
| Twisted Pair Cable Standard |
Category 5e |
| Media Type Supported |
Twisted Pair |
| Technical Information |
| Maximum Operating Distance |
984.25 ft |
| Number of Output Devices Supported |
2 |
| Number of Input Devices Supported |
1 |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
2 |
| Network (RJ-45) |
Yes |
| VGA In |
Yes |
| Number of VGA Inputs |
1 |
| Physical Characteristics |
| Height |
0.9" |
| Width |
3.4" |
| Form Factor |
Rack-mountable |
| Length |
4.7" |
| Weight (Approximate) |
8.82 oz |
| Power Description |
| Input Voltage |
5.3 V DC |
|
