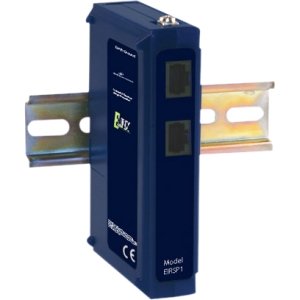

B&B Industrial Ethernet Surge Protector EIRSP1

The Elinx™ EIRSP1 Industrial Ethernet Surge Protector is designed to protect all eight lines used in a standard CAT5e Ethernet cable. It is compatible with 10/100BaseT networks and 802.11af (Modes A & B) Power Over Ethernet. Mode A applies power to the data pairs, pins 1/2 and 3/6. Mode B applies power to the unused pairs, pins 4/5 and 7/8.Network connections are made using RJ-45 connectors. Grounding is accomplished using a ground lug which accepts 14 to 22 AWG wire. Stranded or braided cable is recommended with a three foot maximum run to Earth Ground.

Product Type	Surge Suppressor/Protector
Brand Name	B&B
Manufacturer	B&B Electronics Mfg. Co
Product Model	EIRSP1
Product Name	Industrial Ethernet Surge Protector
Product Line	Elinx
Manufacturer Part Number	EIRSP1
Manufacturer Website Address	http://www.bb-elec.com
Height	3.4"
Width	1.2"
Depth	4.7"
Current	1 kA Surge Current
Power Handling	600 VA
Dataline Protection	RJ-45 Ethernet
Limited Warranty	Lifetime

General Information
Product Type	Surge Suppressor/Protector
Brand Name	B&B
Manufacturer	B&B Electronics Mfg. Co
Product Model	EIRSP1
Product Name	Industrial Ethernet Surge Protector
Product Line	Elinx
Manufacturer Part Number	EIRSP1
Manufacturer Website Address	http://www.bb-elec.com
Physical Characteristics
Height	3.4"
Width	1.2"
Depth	4.7"
Power Description
Current	1 kA Surge Current
Power Handling	600 VA
Technical Information
Dataline Protection	RJ-45 Ethernet
Warranty
Limited Warranty	Lifetime
