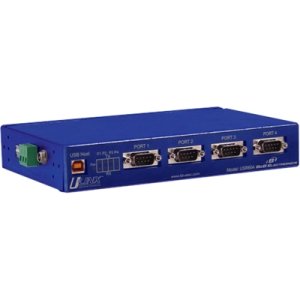

Cables & Memory > Connector Adapters B&B The First Truly "Rugged" USB to Serial Converter USR604 Manufacturer: B+B SmartWorx Product ID: USR604 UPC: 835788111408 Our Price : $Price 595.47 Quantity Buy Now Description & Specs Reviews Warranty Description Condition: New The USR602 and USR604 are packaged in a rugged metal housing. The serial ports are configurable for RS-232, RS-422 and RS-485 (2-Wire & 4-Wire) at speeds up to 921.6 Kbps. Modbus support enables them to be used with a wide variety of industrial devices. USB Connectivity is provided through USB 2.0 Type B High Retention Connector with 3.2 lbs.-force minimum disconnect strength. 10 to 48 VDC power is supplied through a removable three position terminal block. There is an additional threaded barrel connector if your application requires an AC power adapter such as our PS12VLB-INT-MED. USB driver software is included on CD ROM or can be downloaded from this web site. The drivers support Windows Operating Systems up to Windows 7 (32 and 64 bit). Refer to the downloads tab for the latest revision. Each unit comes with DIN Rail and panel mounting hardware, giving maximum flexibility for your installation. Product Type Data Transfer Adapter Brand Name B&B Manufacturer B&B Electronics Mfg. Co Product Model USR604 Product Name The First Truly "Rugged" USB to Serial Converter Manufacturer Part Number USR604 Manufacturer Website Address http://www.bb-elec.com Green Compliant Yes Green Compliance Certificate/Authority RoHS Country of Origin United States Package Contents The First Truly "Rugged" USB to Serial Converter DIN Panel Mount Brackets Height 9.8" Width 6.5" Weight (Approximate) 2.05 lb Connector on First End 1 x Female USB 2.0 USB Connector on Second End 4 x 9-pin DB-9 Female RS-232/RS-422/485 Serial Adapter Type USB/Serial Limited Warranty Lifetime Specifications General Information Product Type Data Transfer Adapter Brand Name B&B Manufacturer B&B Electronics Mfg. Co Product Model USR604 Product Name The First Truly "Rugged" USB to Serial Converter Manufacturer Part Number USR604 Manufacturer Website Address http://www.bb-elec.com Miscellaneous Green Compliant Yes Green Compliance Certificate/Authority RoHS Country of Origin United States Package Contents The First Truly "Rugged" USB to Serial Converter DIN Panel Mount Brackets Physical Characteristics Height 9.8" Width 6.5" Weight (Approximate) 2.05 lb Technical Information Connector on First End 1 x Female USB 2.0 USB Connector on Second End 4 x 9-pin DB-9 Female RS-232/RS-422/485 Serial Adapter Type USB/Serial Warranty Limited Warranty Lifetime Related Items
