Description
Condition:
New

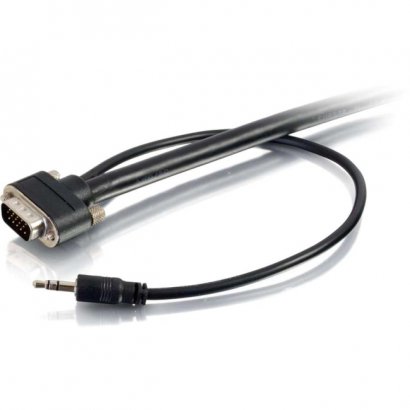

The C2G Select VGA + 3.5mm A/V Cable is perfect for source to display connectivity for in-home desktop or in-wall commercial applications which require video resolutions of up to QXGA (2048x1536) and support for stereo audio. The CMG rated jacket provides a solution for in-wall applications, while the low-profile, rounded connectors make installing in tight spaces, such as a projector mount pole, easy. This cable is designed to support high resolution video applications over long distances of up to 150ft. The 3.5mm audio pigtail on the source side of the cable extends 24 inches away from the VGA connector. This allows for audio connectivity on laptops or other computer platforms where the VGA video output and 3.5mm audio output are commonly placed on opposite sides. The 3.5mm audio pigtail on the display side of the cable extends 10 inches away from the VGA connector providing easy connectivity without excess cabling. All 15 pins are wired providing support for DDC2 (E-DDC) and Extended Display Identification Data (EDID) signals, i.e. communication of the display?s capabilities, ensuring that the content from the source is sent at the optimal resolution for the display.
| Product Type |
A/V Cable
|
| Brand Name |
C2G
|
| Manufacturer |
C2G
|
| Product Name |
6ft Select VGA + 3.5mm A/V Cable M/M
|
| Manufacturer Part Number |
50225
|
| Manufacturer Website Address |
http://www.cablestogo.com
|
| Color |
Black
|
| Weight (Approximate) |
8.90 oz
|
| Connector on First End |
1 x 15-pin HD-15 Male VGA
1 x Mini-phone Male Stereo Audio
|
| Connector on Second End |
1 x 15-pin HD-15 Male VGA
1 x Mini-phone Male Stereo Audio
|
| Cable Type |
VGA/Mini-phone
|
| Device Supported |
Audio/Video Device
Notebook
Monitor
|
| Cable Length |
6 ft
|
| Limited Warranty |
Lifetime
|
Specifications
| General Information |
| Product Type |
A/V Cable |
| Brand Name |
C2G |
| Manufacturer |
C2G |
| Product Name |
6ft Select VGA + 3.5mm A/V Cable M/M |
| Manufacturer Part Number |
50225 |
| Manufacturer Website Address |
http://www.cablestogo.com |
| Physical Characteristics |
| Color |
Black |
| Weight (Approximate) |
8.90 oz |
| Technical Information |
| Connector on First End |
1 x 15-pin HD-15 Male VGA |
| Connector on First End |
1 x Mini-phone Male Stereo Audio |
| Connector on Second End |
1 x 15-pin HD-15 Male VGA |
| Connector on Second End |
1 x Mini-phone Male Stereo Audio |
| Cable Type |
VGA/Mini-phone |
| Device Supported |
Audio/Video Device |
| Device Supported |
Notebook |
| Device Supported |
Monitor |
| Cable Length |
6 ft |
| Warranty |
| Limited Warranty |
Lifetime |
|
