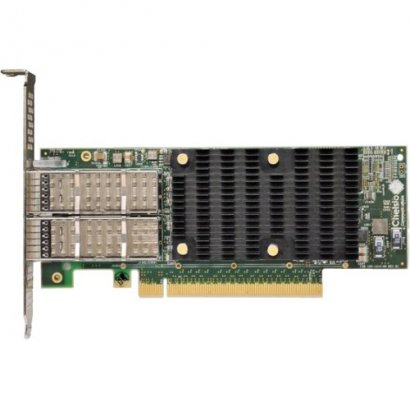

Chelsio's T62100-SO-CR is a dual port 40/50/100Gb Ethernet Server Offload Adapter, with a PCI Express 3.0 x16 host bus interface, optimized for storage, cloud computing, HPC, virtualization and other datacenter networking applications. T62100-SO-CR runs all the host software of its predecessor, T5, as-is, thus enabling leveraging of all the prior software investment. It offers all the features of T5, and in addition adds support for integrated offload of IPsec, TLS/SSL, DTLS and SMB 3.X crypto. This adapter, based on the sixth-generation (T6), memory free technology from Chelsio, provides the highest performance and efficiency, dramatically lowers host-system CPU communications overhead and frees up host CPU cycles for useful applications. As a result, the system benefits from higher bandwidth, lower latency and reduced power consumption. Chelsio memory free variant of the adapters doesn't have any external memory on adapter and can offload a limited number of TOE, iSCSI and iWARP connections. Once offloaded connections limit is reached, the adapter falls back to host compute cycles without disturbing the network traffic. All other features and functionalities are supported transparently by T62100-SO-CR, similar to adapters with external memory on them. All variants of Chelsio adapters leverage single software stack (drivers/firmware/management tools) and support all protocols concurrently. A large portion of offloads enabled by T62100-SO-CR are based on standard TCP, IP, UDP protocols (such as iSCSI and iWARP), and thus can operate with a software peer, or be replaced with a software solution at lower performance, thus providing the requisite reliability for enterprise customers, and allowing incremental installs in the datacenter. It will work with any legacy switch infrastructure and does not rely on new features such as DCB, PFC, ETS, etc. The Unified Wire Solution The T62100-SO-CR shares the high bandwidth and low latency architecture of other T6 products. It forms the basis of high performance server adapter designs with a full suite of stateless offloads, including LRO, LSO, RSS, virtualization, traffic management and security. The T62100-SO-CR supports IEEE standards-based link aggregation/failover features, as well as inter-adapter failover techniques that make it ideal for critical network applications requiring redundancy and high-availability capabilities. T62100-SO-CR also includes an integrated Traffic Manager for robust and flexible flow control, traffic management, and QoS. Chelsio Unified Wire Ethernet-only networking solution reduces the infrastructure costs in network adapters, cables, switches, rack space, power, equipment spares, management tools, planning, networking staff and installation. Sixth-Generation Protocol Offload Engine T6 is Chelsio's sixth-generation TCP offload (TOE) design, fifth-generation iSCSI design, and fourth-generation iWARP (RDMA) implementation. With support for the 8 Gbps PCIe Gen3 data rate, it provides 128Gbps of raw bandwidth. Also provides support for PCIe SR-IOV virtualization with embedded virtual switch.
High Performance, Low Profile, Dual Port 40/50/100GbE Server Offload Adapter
