Description
Condition:
New

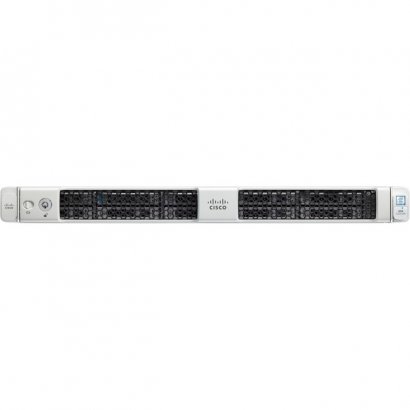

The UCS C220 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs and capacity points up to 128GB, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid state drives (SSDs). The C220 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.The C220 M5 server included one dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.The Cisco UCS C220 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments. UCS C220 M5 Server
Specifications
General Information Product Type: ServerProduct Series: C220 M5Brand Name: CiscoManufacturer: Cisco Systems, IncProduct Name: UCS C220 M5 ServerManufacturer Part Number: UCS-SPR-C220M5-S4Manufacturer Website Address: http://www.cisco.comProcessor & Chipset Processor Core: Octa-core (8 Core)Processor Manufacturer: IntelNumber of Processors Supported: 2Number of Processors Installed: 2Processor Model: 4110Processor Speed: 2.10 GHzProcessor Type: Xeon SilverDisplay & Graphics Graphics Controller Manufacturer: MatroxGraphics Controller Model: G200eGraphics Memory Capacity: Up to 8 MBPower Description Number of Power Supplies Supported: 2Number of Power Supplies Installed: 2Redundant Power Supply: YesMaximum Power Supply Wattage: 770 WI/O Expansions Number of Internal 2.5" Bays: 10Number of Total Expansion Bays: 10Hot Swappable Bays: YesMemory Number of Total Memory Slots: 24Number of Occupied Memory Slots: 2Memory Technology: DDR4 SDRAMMaximum Memory: 3 TBStandard Memory: 32 GBStorage Optical Drive Type: NoControllers RAID Supported: YesRAID Levels: 0, 1, 5, 6, 10, 50, 60, JBODController Type: 12Gb/s SASNetwork & Communication Ethernet Technology: 10 Gigabit EthernetPhysical Characteristics Height: 1.7"Width: 19"Depth: 31"Rack Height: 1UForm Factor: RackWeight (Approximate): 37.50 lbSoftware Operating System: No
|
