Description
Condition:
New

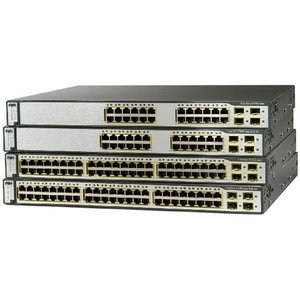

For mid sized organizations and enterprise branch offices, the Cisco Catalyst 3750G-24PS-S eases deployment of converged applications and adapts to changing business needs by providing configuration flexibility, support for converged network patterns, and automation of intelligent network services configurations. In addition, the Cisco Catalyst 3750G-24PS-S is optimized for high-density Gigabit Ethernet deployments and is a diverse switch that meets access, aggregation, or small-network backbone-connectivity requirements.
| Product Type |
Layer 3 Switch
|
| Product Series |
3750
|
| Brand Name |
Cisco
|
| Manufacturer |
Cisco Systems, Inc
|
| Product Name |
Catalyst C3750G-24PS-S Multi-layer Stackable Switch with PoE
|
| Product Line |
Catalyst
|
| Manufacturer Part Number |
WS-C3750G-24PSS-RF
|
| Manufacturer Website Address |
http://www.cisco.com
|
| Manageable |
Yes
|
| Ethernet Technology |
Gigabit Ethernet
|
| Media Type Supported |
Twisted Pair
|
| Network Technology |
10Base-T
10/100/1000Base-T
|
| Number of Total Expansion Slots |
4
|
| Expansion Slot Type |
SFP
|
| Number of PoE (RJ-45) Ports |
24
|
| Stack Port |
Yes
|
| Total Number of Network Ports |
24
|
| Port/Expansion Slot Details |
24 x Gigabit Ethernet Network
4 x Gigabit Ethernet Expansion Slot
|
| Height |
1.7"
|
| Width |
17.5"
|
| Depth |
14.9"
|
| Form Factor |
Rack-mountable
Desktop
|
| Weight (Approximate) |
13.50 lb
|
| Input Voltage |
110 V AC
220 V AC
|
| Package Contents |
- Catalyst C3750G-24PS-S Multi-layer Stackable Switch with PoE
- The Catalyst 3750 Switch Getting Started Guide
- The Regulatory Compliance and Safety Information
- AC power cord
- DC terminal block plug
- One RJ-45-to-DB-9 adapter cable
- Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips truss-head (machine) screws for attaching the brackets using a wall-mount
- One cable guide and one black Phillips machine screw for attaching the cable guide
- One RPS connector cover
- Two Phillips pan-head screws
- Four Phillips truss-head screws
- StackWise cable: 0.5-meter, 1-meter, or 3-meter cable
|
| Layer Supported |
4
|
Specifications
| General Information |
| Product Type |
Layer 3 Switch |
| Product Series |
3750 |
| Brand Name |
Cisco |
| Manufacturer |
Cisco Systems, Inc |
| Product Name |
Catalyst C3750G-24PS-S Multi-layer Stackable Switch with PoE |
| Product Line |
Catalyst |
| Manufacturer Part Number |
WS-C3750G-24PSS-RF |
| Manufacturer Website Address |
http://www.cisco.com |
| Management & Protocols |
| Manageable |
Yes |
| Media & Performance |
| Ethernet Technology |
Gigabit Ethernet |
| Media Type Supported |
Twisted Pair |
| Network Technology |
10Base-T |
| Network Technology |
10/100/1000Base-T |
| I/O Expansions |
| Number of Total Expansion Slots |
4 |
| Expansion Slot Type |
SFP |
| Interfaces/Ports |
| Number of PoE (RJ-45) Ports |
24 |
| Stack Port |
Yes |
| Total Number of Network Ports |
24 |
| Port/Expansion Slot Details |
24 x Gigabit Ethernet Network |
| Port/Expansion Slot Details |
4 x Gigabit Ethernet Expansion Slot |
| Physical Characteristics |
| Height |
1.7" |
| Width |
17.5" |
| Depth |
14.9" |
| Form Factor |
Rack-mountable |
| Form Factor |
Desktop |
| Weight (Approximate) |
13.50 lb |
| Power Description |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Miscellaneous |
| Package Contents |
- Catalyst C3750G-24PS-S Multi-layer Stackable Switch with PoE
- The Catalyst 3750 Switch Getting Started Guide
- The Regulatory Compliance and Safety Information
- AC power cord
- DC terminal block plug
- One RJ-45-to-DB-9 adapter cable
- Mounting kit containing:
- Four rubber feet for mounting the switch on a table
- Two 19-inch rack-mounting brackets
- Six Phillips flat-head screws for attaching the brackets to the switch
- Four Phillips truss-head (machine) screws for attaching the brackets using a wall-mount
- One cable guide and one black Phillips machine screw for attaching the cable guide
- One RPS connector cover
- Two Phillips pan-head screws
- Four Phillips truss-head screws
- StackWise cable: 0.5-meter, 1-meter, or 3-meter cable
|
| Network & Communication |
| Layer Supported |
4 |
|
