Description
Condition:
New

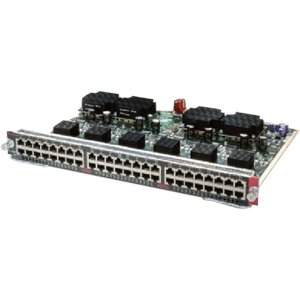

The Cisco Catalyst 4500E Series 48-port Gigabit Ethernet line cards provide high-performance 10/100/1000 switching. Two types of E-Series line cards are available, based on the per-slot bandwidth: 47xx line cards that drive 48 Gbps per slot, and 46xx line cards that drive 24 Gbps per slot. The Cisco Catalyst 4500 48-port 10/100/1000 PoEP E-Series 47xx line card provides standard IEEE 802.3at PoEP support on all 48 ports simultaneously. All series 47xx line cards support standard IEEE 802.1AE encryption and Cisco TrustSec in hardware. The Cisco Catalyst 4500 48-port 10/100/1000 line cards are available in four versions: Data Only, PoE, PoEP, and UPOE.
| Product Type |
Service Module
|
| Product Condition |
Refurbished
|
| Brand Name |
Cisco
|
| Manufacturer |
Cisco Systems, Inc
|
| Product Model |
WS-X4548-RJ45V+
|
| Product Name |
WS-X4548-RJ45V+ Service Module
|
| Manufacturer Part Number |
WS-X4548-RJ45V+-RF
|
| Manufacturer Website Address |
http://www.cisco.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS-5
|
| Compatibility |
Cisco Catalyst 4500-E Series Switches
|
| Data Transfer Rate |
10 Mbps Ethernet
100 Mbps Fast Ethernet
1 Gbps Gigabit Ethernet
|
| Connectivity Media |
Twisted Pair 10/100/1000Base-T
|
| Dimensions |
1.2" Height x 14.3" Width x 10.8" Depth
|
| Application/Usage |
Data Networking
|
| Interfaces/Ports |
48 x 10/100/1000Base-T LAN
|
| Interfaces/Ports Details |
48 x RJ-45 10/100/1000Base-T PoE+ LAN
|
Specifications
| General Information |
| Product Type |
Service Module |
| Product Condition |
Refurbished |
| Brand Name |
Cisco |
| Manufacturer |
Cisco Systems, Inc |
| Product Model |
WS-X4548-RJ45V+ |
| Product Name |
WS-X4548-RJ45V+ Service Module |
| Manufacturer Part Number |
WS-X4548-RJ45V+-RF |
| Manufacturer Website Address |
http://www.cisco.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS-5 |
| Compatibility |
Cisco Catalyst 4500-E Series Switches |
| Media & Performance |
| Data Transfer Rate |
10 Mbps Ethernet |
| Data Transfer Rate |
100 Mbps Fast Ethernet |
| Data Transfer Rate |
1 Gbps Gigabit Ethernet |
| Connectivity Media |
Twisted Pair 10/100/1000Base-T |
| Physical Characteristics |
| Dimensions |
1.2" Height x 14.3" Width x 10.8" Depth |
| Technical Information |
| Application/Usage |
Data Networking |
| Interfaces/Ports |
| Interfaces/Ports |
48 x 10/100/1000Base-T LAN |
| Interfaces/Ports Details |
48 x RJ-45 10/100/1000Base-T PoE+ LAN |
|
