Description
Condition:
New

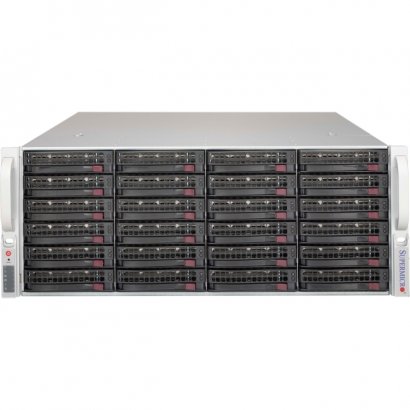

General Information Product Type: Drive EnclosureBrand Name: SupermicroManufacturer: Supermicro Computer, IncProduct Model: 846BE2C-R1K03JBODProduct Name: SuperChassis 846BE2C-R1K03JBODProduct Line: SuperChassisManufacturer Part Number: CSE-846BE2C-R1K03JBODManufacturer Website Address: http://www.supermicro.comPackaged Quantity: 1I/O Expansions Number of Total Expansion Bays: 24Number of 3.5" Bays: 24Number of 5.25" Bays: NoNumber of 2.5" Bays: NoNumber of 2.5"/3.5" Bays: NoNumber of 1.8" Bays: NoPhysical Characteristics Cooling Fan: YesHeight: 7"Width: 17.2"Depth: 26"Color: BlackRack Height: 4UForm Factor: Rack-mountableInterfaces/Ports Drive Interface: Serial ATA/600Drive Interface: 6Gb/s SASDrive Interface: 12Gb/s SASControllers Non-RAID Mode: JBODMiscellaneous Package Contents: - SuperChassis 846BE2C-R1K03JBOD
- 1 x Backplane
- 1 x Control Board
- 1 x CAT 5e RJ45 extension cable for SC847D JBOD internal Male to Female adapter with PCBA 500mm,24AWG,HF,RoHS/REACH,PBF
- 2 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
- 1 x 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS/REACH,PBF
- 8 x Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI],RoHS/REACH
- 2 x 1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm,RoHS/REACH
- 1 x PDB with 23 pairs input connector support SC846B
- 1 x SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
- 1 x Round 16 pin to 16 pin Ribbon FP Cable 75cm. 28AWG
- 2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
- 1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
- 3 x 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing
- 2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
- 1 x Front control board adapter (TB826) for SC216,826,936,846
- 24 x Black gen 5.5 hot-swap 3.5" HDD tray
- 1 x Rail screw bag
- 1 x Set Rail set, quick/quick, default for 4U 17.2
- 1 x 846B rear window which support 2 X 2.5" HDD module and DVD
Specifications
|
