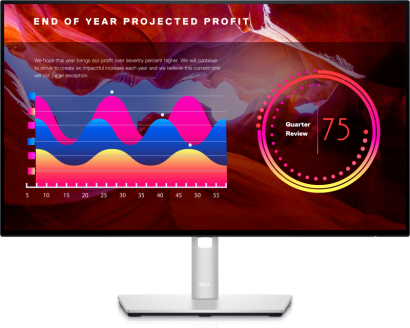

Style meets function: Crafted with premium platinum silver finish, the U2422H comes with a small base and an improved cable management design that hides cables in the monitor riser for a clutter free desk space. Navigate and adjust your monitor screen settings with the easy-to-use joystick control.
Moves with you: Adjust to your comfort with tilt, swivel, pivot and height adjustment to a maximum of 150mm for optimal viewing comfort.
| General |
| Display Type | LED-backlit LCD monitor / TFT active matrix |
| Diagonal Size | 24" |
| Viewable Size | 23.8 |
| Built-in Devices | USB 3.2 Gen 2/USB-C hub |
| Panel Type | IPS |
| Aspect Ratio | 16:9 |
| Native Resolution | 1080i 1920 x 1080 at 60 Hz |
| Pixel Pitch | 0.2745 mm |
| Pixel Per Inch | 92.5 |
| Brightness | 250 cd/m? |
| Contrast Ratio | 1000:1 |
| Colour Support | 16.7 million colours |
| Colour Gamut | 100% Rec 709, 100% sRGB, 85% DCI-P3 |
| Response Time | 5 ms (fast), 8 ms (normal) |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Screen Coating | Anti-glare, 3H Hard Coating |
| Backlight Technology | WLED edgelight backlight |
| Features | Stand lock, Mercury free, arsenic-free glass |
| Dimensions (WxDxH) | 53.76 cm x 17.96 cm x 36.4 cm - with stand (lowest position) |
| Connectivity |
| Interfaces | - HDMI
- DisplayPort 1.4
- DisplayPort output (MST)
- USB-C 3.2 Gen 2 upstream (data only)
- USB-C downstream (power up to 15W)
- USB 3.2 Gen 2 downstream with Battery Charging 1.2
- USB 3.2 Gen 2 downstream
- Audio line-out
|
| Mechanical |
| Display Position Adjustments | Height, pivot (rotation), swivel, tilt |
| Tilt Angle | -5°/+21° |
| Swivel Angle | -45°/+45° |
| Rotation Angle | -90°/+90° |
| Height Adjustment | 150 mm |
| VESA Mounting Interface | 100 x 100 mm |
| Miscellaneous |
| Features | Security lock slot (cable lock sold separately), VESA interface support |
| Cables Included | - 1 x DisplayPort cable - DisplayPort to DisplayPort - 1.8 m
- 1 x USB-C to USB-A cable - 1 m
|
| Compliant Standards | RoHS, NFPA 99, BFR-free, PVC-free |
| Power |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption (On mode) | 11.6 W |
| Power Consumption (Max) | 63 Watt |
| Power Consumption Stand by | 0.3 Watt |
| Power Consumption (Off Mode) | 0.3 Watt |
| On / Off Switch | Yes |
| Dimensions & Weight |
| Dimensions & Weight Details | - With stand (lowest position) - width: 53.76 cm - depth: 17.96 cm - height: 36.4 cm
- With stand (highest position) - width: 53.76 cm - depth: 17.96 cm - height: 49.6 cm
- Without stand - width: 53.76 cm - depth: 4.85 cm - height: 31.07 cm - weight: 3.52 kg
|
| Dimensions & Weight (Shipping) |
| Shipping Weight | 7.81 kg |
| Environmental Standards |
| EPEAT Compliant | EPEAT Gold |
| ENERGY STAR Certified | Yes |
| Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 80% (non-condensing) |
| Warranty | 90 Days |
| Condition | Refurbished |
|---|
