Description
Condition:
New

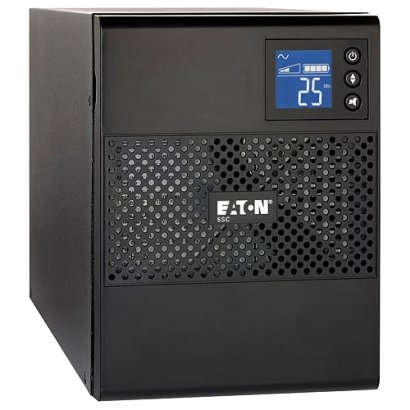

The flexible Eaton 5SC UPS delivers affordable and reliable protection for small business servers, storage and network equipment. The LCD interface provides clear status of UPS key parameters and allows configuration for output voltage, audible alarm and power input sensitivity. By using Eaton's Intelligent Power Manager software with the 5SC UPS you get up-to-the-minute information on the status of power in your network. The 5SC offers pure sinewave output for sensitive equipment as well as buck and boost operation to correct a wide range of input voltage variations without using batteries.
| Product Type |
Line-interactive UPS
|
| Product Series |
5SC
|
| Brand Name |
Eaton
|
| Manufacturer |
Eaton Corporation
|
| Product Name |
5SC UPS
|
| Manufacturer Part Number |
5SC1000
|
| Manufacturer Website Address |
http://www.eaton.com/EatonCom/Markets/NorthAmerica
|
| USB |
Yes
|
| Network (RJ-45) |
Yes
|
| Serial Port |
Yes
|
| Backup/Run Time (Half Load) |
13 Minute
|
| Backup/Run Time (Full Load) |
5 Minute
|
| Battery Characteristics |
Maintenance-free, Sealed
|
| Battery Chemistry |
Lead Acid
|
| Load Capacity (VA) |
1000 VA
|
| Load Capacity (Watt) |
700 W
|
| Input Voltage |
110 V AC
|
| Output Voltage |
120 V AC
|
| Height |
8.2"
|
| Width |
5.9"
|
| Depth |
13.4"
|
| Form Factor |
Tower
|
| Weight (Approximate) |
25.60 lb
|
| Receptacles |
8 x NEMA 5-15R
|
| Plug/Connector Type |
NEMA 5-15P
|
| Package Contents |
- 5SC UPS
- User Manual CD
- Intelligent Power Manager Software CD
- USB Cable
- Serial Cable (RJ45 to DB9)
- Important Safety Instructions
- Limited Warranty Details
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
Line-interactive UPS |
| Product Series |
5SC |
| Brand Name |
Eaton |
| Manufacturer |
Eaton Corporation |
| Product Name |
5SC UPS |
| Manufacturer Part Number |
5SC1000 |
| Manufacturer Website Address |
http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Interfaces/Ports |
| USB |
Yes |
| Network (RJ-45) |
Yes |
| Serial Port |
Yes |
| Battery Information |
| Backup/Run Time (Half Load) |
13 Minute |
| Backup/Run Time (Full Load) |
5 Minute |
| Battery Characteristics |
Maintenance-free, Sealed |
| Battery Chemistry |
Lead Acid |
| Power Description |
| Load Capacity (VA) |
1000 VA |
| Load Capacity (Watt) |
700 W |
| Input Voltage |
110 V AC |
| Output Voltage |
120 V AC |
| Physical Characteristics |
| Height |
8.2" |
| Width |
5.9" |
| Depth |
13.4" |
| Form Factor |
Tower |
| Weight (Approximate) |
25.60 lb |
| Technical Information |
| Receptacles |
8 x NEMA 5-15R |
| Plug/Connector Type |
NEMA 5-15P |
| Miscellaneous |
| Package Contents |
- 5SC UPS
- User Manual CD
- Intelligent Power Manager Software CD
- USB Cable
- Serial Cable (RJ45 to DB9)
- Important Safety Instructions
- Limited Warranty Details
|
| Warranty |
| Limited Warranty |
3 Year |
|
