| Product Type |
Dual Conversion Online UPS
|
| Product Series |
9PX
|
| Brand Name |
Eaton
|
| Manufacturer |
Eaton Corporation
|
| Product Name |

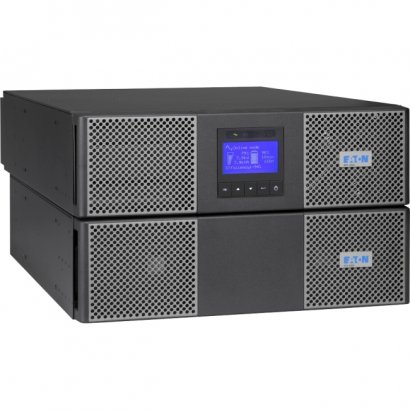

9PX 11kVA Tower/Rack Mountable UPS
|
| Manufacturer Part Number |
9PX11K
|
| Manufacturer Website Address |
http://www.eaton.com/EatonCom/Markets/NorthAmerica
|
| Batteries |
Sealed, Maintenance-free Lead Acid Hot-swappable
|
| Backup/Run Time |
0.05 Hour 10 kW Full Load
0.17 Hour 5 kW Half Load
|
| Height |
10.2"
|
| Width |
17"
|
| Depth |
30"
|
| Form Factor |
6U Tower/Rack Mountable
|
| Weight (Approximate) |
205.03 lb
|
| Receptacles |
3 x NEMA L6-30R
Hardwired
|
| Plug/Connector Type |
Hardwired
|
| Interfaces/Ports |
RJ-45
RS-232 Serial
USB
|
| Input Voltage Range |
100 V AC to 276 V AC
200 V AC Nominal
208 V AC Nominal
230 V AC Nominal
240 V AC Nominal
250 V AC Nominal
|
| Load Capacity |
11 kVA/10 kW
|
| Input Voltage |
110 V AC
220 V AC
|
| Output Voltage |
200 V AC Nominal
208 V AC Nominal
230 V AC Nominal
240 V AC Nominal
250 V AC Nominal
120 V AC Nominal
220 V AC Nominal
|
| Network Management |
SNMP Manageable Included
|
| Package Contents |
- 9PX 11kVA Tower/Rack Mountable UPS
- 9PX11KPM 11 kVA 3U UPS Power Module
- 9PXEBM240RT 3U Extended Battery Module
- MBP11K208 Rear-Mount Maintenance Bypass
- Network-MS Web/SNMP Card
- 4-Post Rail Kit
- User Manual
- Quick Start Guide
- Tower Pedestals
- Intelligent Power Software Suite CD
- RS-232 Serial Cable
- USB Cable
- Cable Gland For Hardwire Conection
- Phillips Head Screw Driver
|
| Limited Warranty |
2 Year
|
