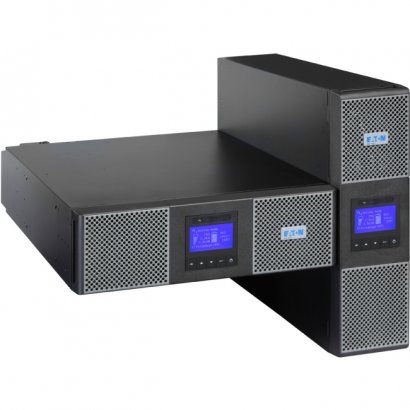

Eaton 9PX 11kVA Tower/Rack Mountable UPS 9PX11KTF11

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Product Type	Dual Conversion Online UPS
Product Series	9PX
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	9PX 11kVA Tower/Rack Mountable UPS
Manufacturer Part Number	9PX11KTF11
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Batteries	Sealed, Maintenance-free Lead Acid Hot-swappable
Backup/Run Time	0.05 Hour 10 kW Full Load 0.17 Hour 5 kW Half Load
Height	15.3"
Width	17"
Depth	28"
Form Factor	9U Tower/Rack Mountable
Weight (Approximate)	376.99 lb
Receptacles	2 x NEMA L14-30R 8 x NEMA 5-20R Hardwired
Plug/Connector Type	Hardwired
Interfaces/Ports	RJ-45 RS-232 Serial USB
Input Voltage Range	100 V AC to 276 V AC 200 V AC Nominal 208 V AC Nominal 230 V AC Nominal 240 V AC Nominal 250 V AC Nominal
Load Capacity	11 kVA/10 kW
Input Voltage	110 V AC 220 V AC
Output Voltage	200 V AC Nominal 208 V AC Nominal 230 V AC Nominal 240 V AC Nominal 250 V AC Nominal 120 V AC Nominal 220 V AC Nominal
Network Management	SNMP Manageable Included
Package Contents	9PX 11kVA Tower/Rack Mountable UPS 9PXTFMR11 11K 120V Stepdown Transformer 9PXEBM240RT 3U Extended Battery Module Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver
Limited Warranty	2 Year

General Information
Product Type	Dual Conversion Online UPS
Product Series	9PX
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	9PX 11kVA Tower/Rack Mountable UPS
Manufacturer Part Number	9PX11KTF11
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Battery Information
Batteries	Sealed, Maintenance-free Lead Acid Hot-swappable
Backup/Run Time	0.05 Hour 10 kW Full Load
Backup/Run Time	0.17 Hour 5 kW Half Load
Physical Characteristics
Height	15.3"
Width	17"
Depth	28"
Form Factor	9U Tower/Rack Mountable
Weight (Approximate)	376.99 lb
Technical Information
Receptacles	2 x NEMA L14-30R
Receptacles	8 x NEMA 5-20R
Receptacles	Hardwired
Plug/Connector Type	Hardwired
Interfaces/Ports	RJ-45
Interfaces/Ports	RS-232 Serial
Interfaces/Ports	USB
Power Description
Input Voltage Range	100 V AC to 276 V AC
Input Voltage Range	200 V AC Nominal
Input Voltage Range	208 V AC Nominal
Input Voltage Range	230 V AC Nominal
Input Voltage Range	240 V AC Nominal
Input Voltage Range	250 V AC Nominal
Load Capacity	11 kVA/10 kW
Input Voltage	110 V AC
Input Voltage	220 V AC
Output Voltage	200 V AC Nominal
Output Voltage	208 V AC Nominal
Output Voltage	230 V AC Nominal
Output Voltage	240 V AC Nominal
Output Voltage	250 V AC Nominal
Output Voltage	120 V AC Nominal
Output Voltage	220 V AC Nominal
Management
Network Management	SNMP Manageable Included
Miscellaneous
Package Contents	9PX 11kVA Tower/Rack Mountable UPS 9PXTFMR11 11K 120V Stepdown Transformer 9PXEBM240RT 3U Extended Battery Module Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver
Warranty
Limited Warranty	2 Year
