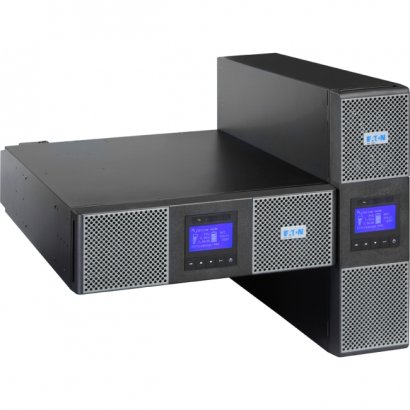

Eaton 9PX5K 5kVA UPS 9PX5KP2

The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage and 28% more power 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.

Product Type	Dual Conversion Online UPS
Product Series	9PX
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	9PX5K 5kVA UPS
Manufacturer Part Number	9PX5KP2
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Batteries	Sealed, Maintenance-free Lead Acid Hot-swappable
Backup/Run Time	0.05 Hour 4.50 kW Full Load 0.18 Hour 2.25 kW Half Load
Height	10.2"
Width	17"
Depth	28"
Form Factor	6U Tower/Rack Mountable
Weight (Approximate)	200.62 lb
Receptacles	Hardwired
Plug/Connector Type	Hardwired
Interfaces/Ports	RS-232 Serial RJ-45 USB
Input Voltage Range	100 V AC to 276 V AC 120 V AC Nominal 208 V AC Nominal 200 V AC Nominal 230 V AC Nominal 240 V AC Nominal
Load Capacity	5 kVA/4.50 kW
Input Voltage	110 V AC 220 V AC
Output Voltage	120 V AC Nominal 208 V AC Nominal 200 V AC Nominal 220 V AC Nominal 230 V AC Nominal 240 V AC Nominal
Network Management	SNMP Manageable Included
Package Contents	9PX5K 5kVA UPS 9PXPPDM2 HW PowerPass Distribution Module Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver
Limited Warranty	2 Year

General Information
Product Type	Dual Conversion Online UPS
Product Series	9PX
Brand Name	Eaton
Manufacturer	Eaton Corporation
Product Name	9PX5K 5kVA UPS
Manufacturer Part Number	9PX5KP2
Manufacturer Website Address	http://www.eaton.com/EatonCom/Markets/NorthAmerica
Battery Information
Batteries	Sealed, Maintenance-free Lead Acid Hot-swappable
Backup/Run Time	0.05 Hour 4.50 kW Full Load
Backup/Run Time	0.18 Hour 2.25 kW Half Load
Physical Characteristics
Height	10.2"
Width	17"
Depth	28"
Form Factor	6U Tower/Rack Mountable
Weight (Approximate)	200.62 lb
Technical Information
Receptacles	Hardwired
Plug/Connector Type	Hardwired
Interfaces/Ports	RS-232 Serial
Interfaces/Ports	RJ-45
Interfaces/Ports	USB
Power Description
Input Voltage Range	100 V AC to 276 V AC
Input Voltage Range	120 V AC Nominal
Input Voltage Range	208 V AC Nominal
Input Voltage Range	200 V AC Nominal
Input Voltage Range	230 V AC Nominal
Input Voltage Range	240 V AC Nominal
Load Capacity	5 kVA/4.50 kW
Input Voltage	110 V AC
Input Voltage	220 V AC
Output Voltage	120 V AC Nominal
Output Voltage	208 V AC Nominal
Output Voltage	200 V AC Nominal
Output Voltage	220 V AC Nominal
Output Voltage	230 V AC Nominal
Output Voltage	240 V AC Nominal
Management
Network Management	SNMP Manageable Included
Miscellaneous
Package Contents	9PX5K 5kVA UPS 9PXPPDM2 HW PowerPass Distribution Module Network-MS Web/SNMP Card 4-Post Rail Kit User Manual Quick Start Guide Tower Pedestals Intelligent Power Software Suite CD RS-232 Serial Cable USB Cable Cable Gland for Hardwire Conection Phillips Head Screw Driver
Warranty
Limited Warranty	2 Year
