Description
Condition:
New

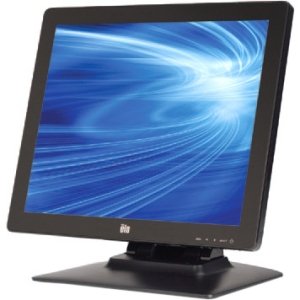

The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.
| Product Type |
LCD Touchscreen Monitor
|
| Brand Name |
Elo
|
| Manufacturer |
Elo Touch Solutions, Inc
|
| Product Model |
1723L
|
| Product Name |
1723L Multifunction 17-Inch Desktop Touchmonitor
|
| Manufacturer Part Number |
E785229
|
| Manufacturer Website Address |
http://www.elotouch.com
|
| Horizontal Viewing Angle |
170?
|
| Vertical Viewing Angle |
160?
|
| Adjustable Display Angle |
Yes
|
| Adjustable Display Height |
Yes
|
| Screen Mode |
SXGA
|
| Features |
Security Lock
Cable Management
Water Proof
|
| Mount Type |
Desk Mountable
Wall Mountable
|
| Screen Size |
17"
|
| Aspect Ratio |
5:4
|
| Response Time |
30 ms
|
| Touchscreen |
Yes
|
| Multi-touch Screen |
Yes
|
| Touchscreen Type |
Surface Acoustic Wave
|
| Standard Refresh Rate |
75 Hz
|
| Brightness |
250 Nit
|
| Color Supported |
16.7 Million Colors
|
| Maximum Resolution |
1280 x 1024
|
| Contrast Ratio |
800:1
|
| USB |
Yes
|
| DVI |
Yes
|
| VGA |
Yes
|
| Weight with Stand (Approximate) |
11.49 lb
|
| VESA Mount Compatible |
Yes
|
| VESA Mount Standard |
75 x 75
|
| Height with Stand |
8.23"
|
| Width with Stand |
15.39"
|
| Depth with Stand |
14.17"
|
| Color |
Black
|
| Weight (Approximate) |
7.85 lb
|
| Operating Power Consumption |
22 W
|
| Input Voltage |
110 V AC
220 V AC
|
| Certifications & Standards |
- UL/cUL
- FCC-A
- Semko
- CE
- VCCI
- C-Tick
|
| Package Contents |
- 1723L Multifunction 17-Inch Desktop Touchmonitor
- Touch Cable
- Video Cable
|
| Speakers |
Yes
|
| Limited Warranty |
3 Year
|
| Built-in Devices |
USB Hub
Speaker
|
Specifications
| General Information |
| Product Type |
LCD Touchscreen Monitor |
| Brand Name |
Elo |
| Manufacturer |
Elo Touch Solutions, Inc |
| Product Model |
1723L |
| Product Name |
1723L Multifunction 17-Inch Desktop Touchmonitor |
| Manufacturer Part Number |
E785229 |
| Manufacturer Website Address |
http://www.elotouch.com |
| Technical Information |
| Horizontal Viewing Angle |
170? |
| Vertical Viewing Angle |
160? |
| Adjustable Display Angle |
Yes |
| Adjustable Display Height |
Yes |
| Screen Mode |
SXGA |
| Features |
Security Lock |
| Features |
Cable Management |
| Features |
Water Proof |
| Mount Type |
Desk Mountable |
| Mount Type |
Wall Mountable |
| Screen Size |
17" |
| Aspect Ratio |
5:4 |
| Response Time |
30 ms |
| Touchscreen Information |
| Touchscreen |
Yes |
| Multi-touch Screen |
Yes |
| Touchscreen Type |
Surface Acoustic Wave |
| Video |
| Standard Refresh Rate |
75 Hz |
| Brightness |
250 Nit |
| Color Supported |
16.7 Million Colors |
| Maximum Resolution |
1280 x 1024 |
| Contrast Ratio |
800:1 |
| Interfaces/Ports |
| USB |
Yes |
| DVI |
Yes |
| VGA |
Yes |
| Physical Characteristics |
| Weight with Stand (Approximate) |
11.49 lb |
| VESA Mount Compatible |
Yes |
| VESA Mount Standard |
75 x 75 |
| Height with Stand |
8.23" |
| Width with Stand |
15.39" |
| Depth with Stand |
14.17" |
| Color |
Black |
| Weight (Approximate) |
7.85 lb |
| Power Description |
| Operating Power Consumption |
22 W |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Miscellaneous |
| Certifications & Standards |
- UL/cUL
- FCC-A
- Semko
- CE
- VCCI
- C-Tick
|
| Package Contents |
- 1723L Multifunction 17-Inch Desktop Touchmonitor
- Touch Cable
- Video Cable
|
| Audio |
| Speakers |
Yes |
| Warranty |
| Limited Warranty |
3 Year |
| Built-in Devices |
| Built-in Devices |
USB Hub |
| Built-in Devices |
Speaker |
|
