The M12 Channel Adapter Advantage The DSX-CHA021S is a set of two M12 channel adapters for use with the DSX-5000. These adapters allow you to test and certify installed channel links to ensure reliable transmission of Fast Ethernet (100BASE-TX) in the demanding MICE environment of industrial networking applications.When used together, the DSX M12 Channel Adapters and DSX-5000 CableAnalyzer™ provide a complete solution that is fully compliant with industry standards. The M12 connectors support the transmission requirements for TIA Cat 5e or ISO Class D. A cabling link that passes the TIA Cat 5e or ISO Class-D requirements fully supports the deployment of Fast Ethernet (100BASETX) over a distance up to 100 m (328 ft). The M12 channel adapters also allow you to test and certify installed channel links directly to the 100BASE-TX link transmission performance requirements specified in IEEE Std 802.3-2012 clause 25.4.9.

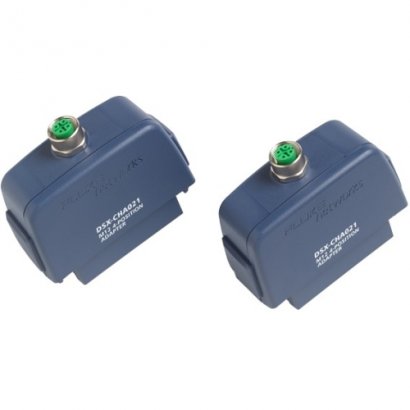

Set Of DSX M12 4-Position Channel Adapters
