Description
Condition:
New

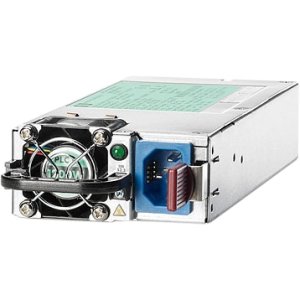

HP Common Slot (CS) Power Supplies share a common electrical and physical design that allows for hot-swap, tool-less installation into HP server and storage solutions. CS power supplies are available in multiple high-efficiency input and output options, allowing users to "right-size" a power supply for specific server/storage configurations and environments. This flexibility helps to minimize power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center. A key part of the HP Thermal Discovery Services, CS Platinum/Platinum Plus Power Supplies provide the IT industry's highest level of power efficiency(94%), helping customers to reduce power requirements by up to 60W per server and reducing overall data center power requirements by up to 10% (as compared to ProLiant G6 power estimates). CS Platinum/Platinum Plus power supplies also enable HP Power Discovery Services which focus on increasing compute density while reducing data center outages.
| Product Type |
Power Module
|
| Brand Name |
HP
|
| Manufacturer |
Hewlett-Packard
|
| Product Name |
1200W Common Slot Platinum Plus Hot Plug Power Supply Kit
|
| Manufacturer Part Number |
656364-B21
|
| Manufacturer Website Address |
http://www.hp.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
80 Plus Platinum
|
| Height |
7.5"
|
| Width |
1.5"
|
| Depth |
3.4"
|
| Input Voltage Range |
100 V AC to 240 V AC
|
| Frequency |
50 Hz
60 Hz
|
| Input Voltage |
110 V AC
220 V AC
|
| Output Power |
1.20 kW
|
Specifications
| General Information |
| Product Type |
Power Module |
| Brand Name |
HP |
| Manufacturer |
Hewlett-Packard |
| Product Name |
1200W Common Slot Platinum Plus Hot Plug Power Supply Kit |
| Manufacturer Part Number |
656364-B21 |
| Manufacturer Website Address |
http://www.hp.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
80 Plus Platinum |
| Physical Characteristics |
| Height |
7.5" |
| Width |
1.5" |
| Depth |
3.4" |
| Power Description |
| Input Voltage Range |
100 V AC to 240 V AC |
| Frequency |
50 Hz |
| Frequency |
60 Hz |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Output Power |
1.20 kW |
|
