Description
Condition:
New

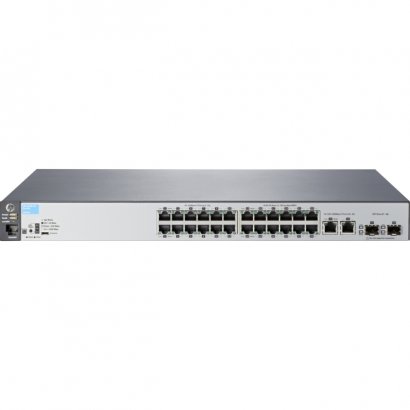

The HP 2530 Switch Series consists of 12 fully managed Layer 2 edge switches that deliver cost-effective, reliable, secure, and easy-to-use connectivity to business networks. Designed for entry-level to midsize enterprise networks, these Gigabit and Fast Ethernet switches deliver full Layer 2 capabilities with optional PoE+, enhanced access security, traffic prioritization, and IPv6 host support.The HP 2530 Switch Series offers uplink flexibility with four Gigabit Ethernet uplinks on all 24- and 48-port models. Gigabit Ethernet uplinks are four small form-factor pluggable (SFP) slots for fiber connectivity on the 24- and 48-port Gigabit Ethernet models. The Fast Ethernet 24- and 48-port models have two SFPs and two RJ-45 Gigabit uplinks. The compact and fanless 8-port switches offer additional flexibility with two dual-personality ports that can be used as either RJ-45 Gigabit Ethernet or SFP ports. For customers implementing Power over Ethernet for voice, video, or wireless deployments, the HP 2530 PoE+ switches are IEEE 802.3af and IEEE 802.3at compliant with up to 30 W per port.
| Product Type |
Ethernet Switch
|
| Product Series |
2530
|
| Brand Name |
HP
|
| Manufacturer |
Hewlett-Packard
|
| Product Model |
2530-24
|
| Product Name |
2530-24 Switch
|
| Manufacturer Part Number |
J9782A#ABA
|
| Manufacturer Website Address |
http://www.hp.com
|
| Manageable |
Yes
|
| Compatible Rack Unit |
1U
|
| Height |
1.8"
|
| Width |
17.4"
|
| Depth |
9.7"
|
| Form Factor |
Rack-mountable
Desktop
Wall Mountable
|
| Weight (Approximate) |
5.70 lb
|
| Ethernet Technology |
Fast Ethernet
Gigabit Ethernet
|
| Media Type Supported |
Twisted Pair
|
| Network Technology |
10/100Base-TX
10/100/1000Base-T
|
| Number of Total Expansion Slots |
2
|
| Expansion Slot Type |
SFP
|
| Number of Network (RJ-45) Ports |
24
|
| Total Number of Network Ports |
24
|
| Port/Expansion Slot Details |
24 x Fast Ethernet Network
2 x Gigabit Ethernet Uplink
2 x Gigabit Ethernet Expansion Slot
|
| PoE (RJ-45) Port |
No
|
| Input Voltage |
110 V AC
220 V AC
|
| Package Contents |
- 2530-24 Switch
- Mounting Hardware
|
| Limited Warranty |
Lifetime
|
| Layer Supported |
2
|
Specifications
| General Information |
| Product Type |
Ethernet Switch |
| Product Series |
2530 |
| Brand Name |
HP |
| Manufacturer |
Hewlett-Packard |
| Product Model |
2530-24 |
| Product Name |
2530-24 Switch |
| Manufacturer Part Number |
J9782A#ABA |
| Manufacturer Website Address |
http://www.hp.com |
| Management & Protocols |
| Manageable |
Yes |
| Physical Characteristics |
| Compatible Rack Unit |
1U |
| Height |
1.8" |
| Width |
17.4" |
| Depth |
9.7" |
| Form Factor |
Rack-mountable |
| Form Factor |
Desktop |
| Form Factor |
Wall Mountable |
| Weight (Approximate) |
5.70 lb |
| Media & Performance |
| Ethernet Technology |
Fast Ethernet |
| Ethernet Technology |
Gigabit Ethernet |
| Media Type Supported |
Twisted Pair |
| Network Technology |
10/100Base-TX |
| Network Technology |
10/100/1000Base-T |
| I/O Expansions |
| Number of Total Expansion Slots |
2 |
| Expansion Slot Type |
SFP |
| Interfaces/Ports |
| Number of Network (RJ-45) Ports |
24 |
| Total Number of Network Ports |
24 |
| Port/Expansion Slot Details |
24 x Fast Ethernet Network |
| Port/Expansion Slot Details |
2 x Gigabit Ethernet Uplink |
| Port/Expansion Slot Details |
2 x Gigabit Ethernet Expansion Slot |
| Power Description |
| PoE (RJ-45) Port |
No |
| Input Voltage |
110 V AC |
| Input Voltage |
220 V AC |
| Miscellaneous |
| Package Contents |
- 2530-24 Switch
- Mounting Hardware
|
| Warranty |
| Limited Warranty |
Lifetime |
| Network & Communication |
| Layer Supported |
2 |
|
