Description
Condition:
New

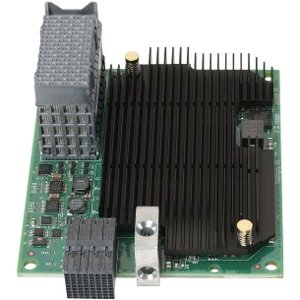

The IBM® Flex System™ FC5052 2-port and FC5054 4-port 16Gb FC Adapters enable the highest FC speed access for Flex System compute nodes to an external storage area network (SAN). These adapters are based on the proven Emulex Fibre Channel stack, and work with 16 Gb Flex System Fibre Channel switch modules. As the only 4-port HBA for IBM Flex System, the FC5054 provides unmatched scalability and redundancy. In addition, the FC5054 has two separate ASICs with no bridge chip, so data flows directly to an independent PCIe bus for high availability without a single point of failure. It also allows for logical partitioning on IBM Power Systems™ compute nodes. The following figure shows the IBM Flex System FC5054 4-port 16Gb FC Adapter.
| Total Number of Ports |
2
|
| Host Interface |
PCI Express x8
|
| Product Type |
10Gigabit Ethernet Card
|
| Brand Name |
IBM
|
| Manufacturer |
IBM Corporation
|
| Product Name |
Flex System FC5052 2-Port 16Gb FC Adapter
|
| Manufacturer Part Number |
95Y2386
|
| Manufacturer Website Address |
http://www.ibm.com
|
| Media Type Supported |
Optical Fiber
|
| Device Supported |
Server
|
| Platform Supported |
PC
|
| Network Technology |
Fibre Channel
|
| Width |
3.9"
|
| Depth |
3.1"
|
| Form Factor |
Plug-in Card
|
Specifications
| Interfaces/Ports |
| Total Number of Ports |
2 |
| Host Interface |
PCI Express x8 |
| General Information |
| Product Type |
10Gigabit Ethernet Card |
| Brand Name |
IBM |
| Manufacturer |
IBM Corporation |
| Product Name |
Flex System FC5052 2-Port 16Gb FC Adapter |
| Manufacturer Part Number |
95Y2386 |
| Manufacturer Website Address |
http://www.ibm.com |
| Media & Performance |
| Media Type Supported |
Optical Fiber |
| Miscellaneous |
| Device Supported |
Server |
| Platform Supported |
PC |
| Network & Communication |
| Network Technology |
Fibre Channel |
| Physical Characteristics |
| Width |
3.9" |
| Depth |
3.1" |
| Form Factor |
Plug-in Card |
|
