Description
Condition:
New

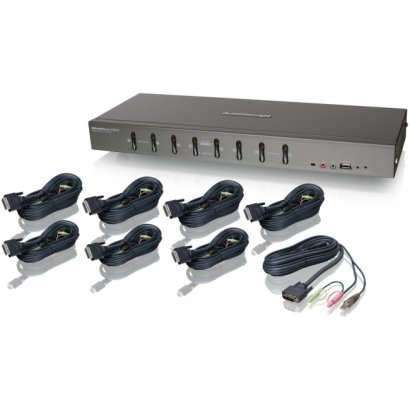

The IOGEAR 8-port USB DVI KVMP Switch Kit is a control unit that allows access and control of up to 8 DVI computers from a single USB keyboard, USB mouse. It can be cascaded to three levels - allowing up to 73 GCS1108s to control up to 512 computers - all from the original single console. In addition, GCS1108 comes with IOGEAR's Video DynaSync™ technology to optimize the display resolution. IOGEAR's DynaSync* technology reads and remembers the monitor's parameters (EDID) so there is no delay or change of video resolution when switching between, or booting computers.Switching between computers can be easily accomplished either by manually pressing the front panel push buttons, entering hotkey combinations from the keyboard, or via on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.GCS1108KIT1 provides 2.1 stereo audio and microphone support, as well as multimedia keyboard support.
| USB |
Yes
|
| DVI |
Yes
|
| VGA |
Yes
|
| Number of USB Ports |
10
|
| Number of VGA Ports |
1
|
| Number of DVI Ports |
8
|
| Product Type |
KVM Switchbox
|
| Brand Name |
Iogear
|
| Manufacturer |
Iogear, Inc
|
| Product Name |
8-Port DVI KVMP Switch Kit
|
| Manufacturer Part Number |
GCS1108KIT1
|
| Manufacturer Website Address |
http://www.iogear.com
|
| Package Contents |
- 8-Port DVI KVMP Switch Kit
- 4 x 6ft Single Link DVI-D USB KVM Cable
- 4 x 10ft Single Link DVI-D USB KVM Cable
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x Foot Pad Set (4 pcs)
- 1 x User Manual
- 1 x Rack Mounting Kit
|
| Form Factor |
Rack-mountable
|
| KVM Technology |
Digital & Analog
|
| Number of Computers Supported |
8
|
| Number of Local Users Supported |
1
|
| Maximum Video Resolution |
2048 x 1536
|
| Graphic Mode |
QXGA
|
| Limited Warranty |
3 Year
|
Specifications
| Interfaces/Ports |
| USB |
Yes |
| DVI |
Yes |
| VGA |
Yes |
| Number of USB Ports |
10 |
| Number of VGA Ports |
1 |
| Number of DVI Ports |
8 |
| General Information |
| Product Type |
KVM Switchbox |
| Brand Name |
Iogear |
| Manufacturer |
Iogear, Inc |
| Product Name |
8-Port DVI KVMP Switch Kit |
| Manufacturer Part Number |
GCS1108KIT1 |
| Manufacturer Website Address |
http://www.iogear.com |
| Miscellaneous |
| Package Contents |
- 8-Port DVI KVMP Switch Kit
- 4 x 6ft Single Link DVI-D USB KVM Cable
- 4 x 10ft Single Link DVI-D USB KVM Cable
- 1 x Firmware Upgrade Cable
- 1 x Power Adapter
- 1 x Foot Pad Set (4 pcs)
- 1 x User Manual
- 1 x Rack Mounting Kit
|
| Physical Characteristics |
| Form Factor |
Rack-mountable |
| Technical Information |
| KVM Technology |
Digital & Analog |
| Number of Computers Supported |
8 |
| Number of Local Users Supported |
1 |
| Video |
| Maximum Video Resolution |
2048 x 1536 |
| Graphic Mode |
QXGA |
| Warranty |
| Limited Warranty |
3 Year |
|
