Description
Condition:
New

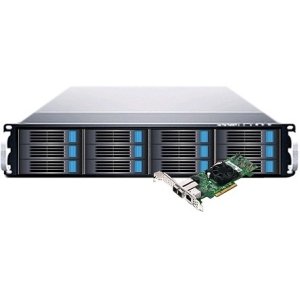

The EliteSTOR ES212X12HP is a complete 2U 12G SAS RAID solution for performance hungry RAID storage solution. Utilizing the latest 12G SAS expander technology, the ES212X12HP provides up to 48Gb/s or 4800MB/s of data bandwidth to fulfill the most demanding application. The ES212X12HP supports SATA or SAS 12Gb/s hard drives or SSD and is backward compatible to 6Gb/s SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES212X12HP supports up to 12 SAS or SATA drives using only one HD mini-SAS (SFF-8644) cable. A built-in SAS expansion port enables the system to connect up to 256 drives drives daisy-chained together. The system comes with a high performance RAID controller card, and the ES212X12HP is capable of delivering over in 3,000MB/s read and write performance, doubling the existing 6G SAS expander bandwidth. Dedicated dual-core RAID engines provides RAID 0, 1, 3, 5, 6, 10, 50, 60 support with enterprises features and performances. System status information is provided by the LED, including hard drives, power supply and cooling fan status, as well as RAID controller's event log and e-mail notification system. All necessary hardware comes standard including RAID controller card, mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES212X12HP is an ideal storage expansion solution for servers or high performance video editing workstations. Support Windows (Vista or up, Server 2003 or up), Apple (OS X 10.4 or up), Linux and BSD. VMware ESX and Microsoft Hyper-V is also supported. EliteSTOR DAS Array
Specifications
General Information Product Type: DAS ArrayBrand Name: Sans DigitalManufacturer: Sans DigitalProduct Model: ES212X12HPProduct Name: EliteSTOR ES212X12HP DAS ArrayProduct Line: EliteSTORManufacturer Part Number: KT-ES212X12HPManufacturer Website Address: http://www.sansdigital.comMiscellaneous Green Compliant: YesGreen Compliance Certificate/Authority: RoHSPackage Contents: - EliteSTOR ES212X12HP DAS Array
- 12G PCIe 3.0 RAID Controller
- HD Mini-SAS Cable
- Cooling Fan
- Tray Modules
- Build-in Mounting Rail
- Bracket
I/O Expansions Number of Total Expansion Bays: 12Number of 3.5" Bays: 12Storage Total Hard Drive Capacity Supported: 48 TBNumber of Hard Drives Supported: 12Number of Hard Drives Installed: NoNumber of Solid State Drive Supported: 12Number of Solid State Drive Installed: NoPhysical Characteristics Height: 3.5"Width: 19"Depth: 23"Rack Height: 2UForm Factor: Rack-mountableWeight (Approximate): 35 lbControllers RAID Levels: 0, 1, 3, 5, 6, 10, 30, 50, 60, 100, 1E, JBODController Type: 12Gb/s SASController Type: Serial ATA/600Warranty Limited Warranty: 3 YearInterfaces/Ports Host Interface: Mini-SAS
ES212X12HP
|
