Description
Condition:
New

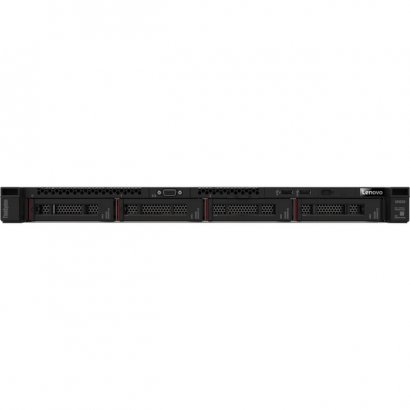

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC. ThinkSystem SR630 Server
Specifications
-
General Information -
Product Type: Server -
Product Series: SR630 -
Brand Name: Lenovo -
Manufacturer: Lenovo Group Limited -
Product Model: 7X02A0FANA -
Product Name: ThinkSystem SR630 7X02A0FANA Server -
Product Line: ThinkSystem -
Manufacturer Part Number: 7X02A0FANA -
Manufacturer Website Address: http://www.lenovo.com/us/en/ -
Processor & Chipset -
Processor Core: Octa-core (8 Core) -
Processor Manufacturer: Intel -
Number of Processors Supported: 2 -
Number of Processors Installed: 1 -
Processor Generation: 2nd Gen -
Processor Model: 4208 -
Processor Speed: 2.10 GHz -
Processor Type: Xeon Silver -
Miscellaneous -
Environmentally Friendly: Yes -
Environmental Certification: ENERGY STAR 3.0 -
Environmental Certification: RoHS -
Energy Star: Yes -
Package Contents: - ThinkSystem SR630 7X02A0FANA Server
- Rack Installation Guide
- Electronic Publications Flyer
- Tool-less Rail Kit
- 2.8 m C13-C14 Rack Power Cable
-
Display & Graphics -
Graphics Controller Manufacturer: Matrox -
Graphics Controller Model: G200e -
Graphics Memory Capacity: Up to 16 MB -
Power Description -
Number of Power Supplies Supported: 2 -
Number of Power Supplies Installed: 1 -
Maximum Power Supply Wattage: 750 W -
Input Voltage: 120 V AC -
Input Voltage: 230 V AC -
Memory -
Number of Total Memory Slots: 24 -
Number of Occupied Memory Slots: 1 -
Intel Optane Memory Ready: Yes -
Memory Technology: TruDDR4 -
Standard Memory: 16 GB -
Storage -
Optical Drive Type: No -
Total Hard Drive Capacity: No -
Controllers -
RAID Supported: Yes -
RAID Levels: 0, 1, 5, 10, 50, JBOD -
Controller Type: Serial ATA/600 -
Controller Type: 12Gb/s SAS -
Network & Communication -
Ethernet Technology: Gigabit Ethernet -
I/O Expansions -
Number of Total Expansion Bays: 4 -
Number of 3.5" Bays: 4 -
Hot Swappable Bays: Yes -
Physical Characteristics -
Height: 1.7" -
Width: 17.1" -
Depth: 28.1" -
Rack Height: 1U -
Form Factor: Rack -
Weight (Approximate): 41.45 lb -
Software -
Operating System: No -
Warranty -
Limited Warranty: 3 Year
|
