The FlexPoint GX/T is a 10/100/1000BASE-T UTP to 1000BASE-X modular fiber media converter that supports jumbo frames up to 10,240 bytes. The GX/T features Small Form Pluggable (SFP) transceivers that support both 100BASE-FX and 1000BASE-X for interoperability with Gigabit and Fast Ethernet fiber equipment. SFP transceivers enable adaptability to different fiber types, speed and distances, and support Coarse Wave Division Multiplexing (CWDM) technology to increase the bandwidth capacity of fiber infrastructure.The FlexPoint GX/T also supports SC and ST fixed fiber connectors for multimode, single-mode fiber; and single-mode single-fiber models are available.Both the fiber port and the UTP port support auto-negotiation, an IEEE standard which defines how all the communicating devices automatically perform their configuration functions. Auto-negotiation achieves the best possible mode of operation (speed, duplex mode and Pause mode) between the devices.The FlexPoint GX/T is a 10/100/1000 copper to 100/1000* modular fiber media converterConforms to 10BASE-T, 100BASE-TX, 1000BASE-T, 100BASE-FX* and 1000BASE-X specificationsFiber port supports multimode and single-mode fiber with ST and SC connectors and single-fiber with SC connectorsSupports dual fiber and single-fiber 100BASE-FX or 1000BASE-X SFP transceivers for standard or CWDM wavelengthsBoth the fiber and UTP ports support auto-negotiationProvides Remote Fault Indicators to signal loss of link for Far-End Fault and Link Fault conditionsUTP port supports 10/100/1000Mbps and Half/Full-DuplexAuto or manually configured Pause function for flow controlSupports jumbo frames up to 10,240 bytesLoopback mode supports end-to-end testingUser-selectable Link Modes for quick fault detectionDiagnostic and DIP-switch configurations are displayed with status LEDs for quick and easy installationTabletop, wall-mounted, rack-mounted in a 5-Module shelf or in a 14-Module power-redundant chassis optionsLifetime Warranty and free 24/7 Technical Support

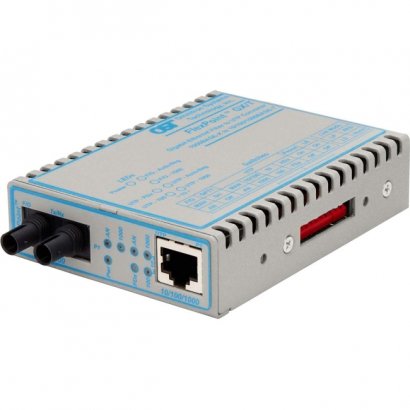

FlexPoint GX/T ST Multimode 550m US AC Powered
