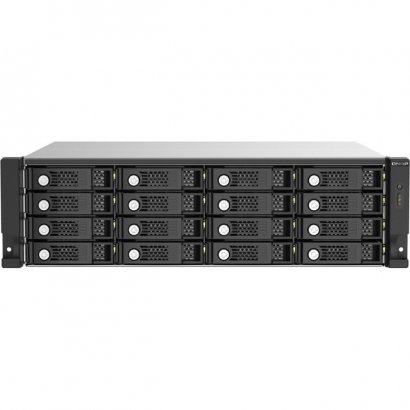

Enterprise-grade SAS 12Gb/s storage expansion supporting multipath routing and daisy chaining The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation. Supported NAS SystemExpand the storage space of a QTS/QuTS hero NAS, supports up to 4.6PB raw capacity by daisy-chaining up to 16 expansion enclosures. Storage ManagementManage the storage space and settings of the TL-R1620Sep-RP with Storage & Snapshot Manager on the host NAS. DataBolt Bandwidth Optimization Combine multiple 6Gb/s transmissions into 12 Gb/s data streams to achieve faster speed with existing 6Gb/s infrastructure. Remote Files TransferConserve network bandwidth and performance by using the TL-R1620Sep-RP to transfer huge files from one device to another. Multipath RoutingEnsure smooth data transmission and continuous operation by using the TL-R1620Sep-RP with a NAS that supports multipath routing. Easy Installation & StorageWith a short-depth design, the TL-R1620Sep-RP is suitable for universal deployment. Achieve up to 96Gb/s with link aggregation The TL-R1620Sep-RP is powered by a low-power 28nm SAS35x36R SAS Expander and supports 12/6 Gb/s SAS/SATA drives. Also, it has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. By connecting the TL-R1620Sep-RP to the host NAS and daisy-chaining multiple JBODs with two wide ports configured with link aggregation, the solution delivers up to 96Gb/s transfer speed. Supports SAS DataBolt™ technology, delivers 12Gb/s speed using existing 6Gb/s infrastructure Featuring Broadcom® SAS DataBolt™ bandwidth optimization technology, the TL-R1620Sep-RP features an intelligent data buffer for transferring data to drives at speeds that match the performance of the host NAS. Whether the TL-R1620Sep-RP uses 12Gb/s or 6Gb/s drives, the NAS host will transfer data to the TL-R1620Sep-RP at 12Gb/s, allowing you benefit from high-speed 12Gb/s SAS transmission with existing 6Gb/s infrastructure. Short-depth design Can be installed in standard server racks or small AV cabinets (3U, H 131.3 x W 482.2 x D 425.3 mm) Connect up to 16 JBODs, support up to 4.6 PB raw capacity The TL-R1620Sep-RP has four 12 Gb/s SAS 3.0 (x4 Lane) SFF-8644 SAS Wide Ports. Up to sixteen TL-R1620Sep-RP can be daisy-chained to achieve a raw capacity of up to 4.6PB. Multipath routing to ensure continuous system operations By daisy chaining the TL-R1620Sep-RP, data transmission loads can be balanced with multipath routing to achieve high availability. If one route fails, another transmission route can be used to access the data and ensure continuous system operations. The TL-R1620Sep-RP also features a redundant power supply to ensure system uptime.
Drive Enclosure
