Description
Condition:
New

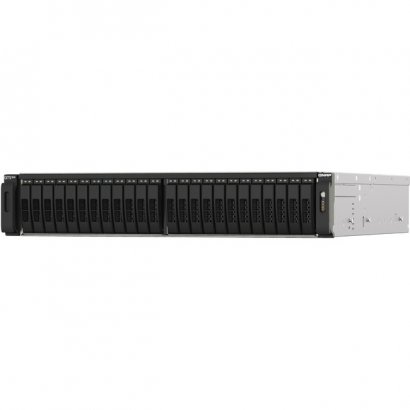

ZFS-based, 24-bay U.2 NVMe all-flash storage built for high-performance and low-latency virtualized workloads and data centers The NVMe all-flash TS-h2490FU is designed for providing extreme performance with high cost-efficiency. Featuring 24 U.2 NVMe Gen 3 x4 SSD bays, the TS-h2490FU delivers up to 472K/205K random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Coupled with near-unlimited snapshots, real-time SnapSync, and petabyte-scale storage expansion capabilities, the TS-h2490FU is ideal for I/O-intensive and latency-sensitive applications, and eliminates productivity bottlenecks in modern data centers, virtualization, and mission-critical backup/restore tasks. Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan. Multi-connectivity of 25GbE SFP28 and 2.5GbE RJ45 accelerate virtualization, intensive file access, and large backup/restoration tasks. PCIe Gen 4 slots allow for installing 10GbE/25GbE/40GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance. Supports virtualization storage and hosting virtual machines and containerized apps. Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS to ensure low-latency data access to the cloud. Scalable design to grow with your business by connecting SAS 12Gb/s expansion enclosures for up to petabyte-scale storage capacity. 2nd Gen AMD EPYC™ processors and DDR4 ECC memory The TS-h2490FU is armed with 2nd Gen AMD EPYC™ 7002 series processors (Rome). Based on the "Zen 2" architecture with cutting-edge 7nm process technology, up to 128 PCIe lanes of I/O are provided for 32Gb/s dedicated bandwidth per SSD. With DDR4 ECC memory that detects and corrects single-bit memory errors for higher reliability, the TS-h2490FU provides 8-channel modules and 16 Long-DIMM slots to fulfill memory-intensive workloads. Demonstrating immense computing power and multi-tasking capabilities, the TS-h2490FU is the ideal choice for uncompromising performance demands in HPC, virtualization, and hybrid/multi-cloud applications. U.2 NVMe Gen 3 x4 All-Flash Storage Array The 2U rackmount TS-h2490FU has 24 drive bays for U.2 NVMe Gen 3 x4 SSDs, with each individual SSD having 32Gb/s dedicated bandwidth for the utmost application response times. Coupled with powerful ZFS data deduction and SSD optimization technologies, the TS-h2490FU provides solid foundations for overcoming complexity and performance demands in today's evolving data center workloads. Empower high-speed data transfer with four 25GbE ports The TS-h2490FU provides breakthrough network connectivity with two pre-installed dual-port 25GbE SFP28 SmartNICs* (that use the Broadcom NetXtreme®-E Series BCM57414, Mellanox® ConnectX®-4 Lx, or the same level SmartNIC). With failover and Port Trunking for up to 100Gb/s bandwidth, the TS-h2490FU empowers your organization with the bandwidth to tackle the most demanding applications, including data centers, virtualization, massive file transfer, high-speed backup/restoration, and multimedia transmission. SAN/NAS Storage System
Specifications
-
General Information -
Product Type: SAN/NAS Storage System -
Brand Name: QNAP -
Manufacturer: QNAP Systems -
Product Model: TS-H2490FU-7302P-128G -
Product Name: TS-H2490FU-7302P-128G SAN/NAS Storage System -
Manufacturer Part Number: TSH2490FU7302P128GUS -
Manufacturer Website Address: http://www.qnap.com -
Processor & Chipset -
Processor Core: Octa-core (8 Core) -
Processor Manufacturer: AMD -
Processor Model: 7302P -
Processor Speed: 3.10 GHz -
Processor Type: EPYC -
Storage -
Flash Memory Capacity: 5 GB -
Number of Solid State Drive Supported: 24 -
Number of Solid State Drive Installed: 0 -
Power Description -
Number of Power Supplies Installed: 2 -
Redundant Power Supply: Yes -
Maximum Power Supply Wattage: 1100 W -
Controllers -
RAID Supported: Yes -
RAID Levels: 0, 1, 5, 6, 10, 50, 60, Hot Spare, JBOD -
Controller Type: NVMe -
Network & Communication -
Ethernet Technology: 25 Gigabit Ethernet -
I/O Expansions -
Number of Total Expansion Bays: 24 -
Number of Total Expansion Slots: 7 -
Number of 2.5" Bays: 24 -
Expansion Slot Type: SFP28 -
Expansion Slot Type: PCI Express x4 -
Expansion Slot Type: PCI Express x8 -
Expansion Slot Type: PCI Express x16 -
Interfaces/Ports -
Number of Network (RJ-45) Ports: 2 -
Network (RJ-45): Yes -
Total Number of USB Ports: 2 -
Number of USB 3.2 Gen 1 Ports: 2 -
Physical Characteristics -
Height: 3.5" -
Width: 18.9" -
Depth: 20.1" -
Rack Height: 2U -
Form Factor: Rack-mountable -
Weight (Approximate): 33.51 lb -
Memory -
Memory Technology: DDR4 SDRAM -
Standard Memory: 128 GB -
Software -
Operating System: QuTS hero 4.5.0 -
Management & Protocols -
Protocols: TCP/IP -
Protocols: IPv4 -
Protocols: IPv6 -
Protocols: DHCP -
Protocols: iSCSI -
Protocols: DDNS -
Protocols: NAT -
Protocols: STP -
Protocols: HTTP -
Protocols: HTTPS -
Protocols: WEBDAV -
Protocols: SSL -
Protocols: SSH -
Protocols: Telnet -
Protocols: FTP -
Protocols: CIFS/SMB -
Protocols: AFP -
Protocols: SMTP -
Protocols: LDAP -
Protocols: SNMP -
Protocols: NFS -
Protocols: NFSv3 -
Protocols: NFSv4 -
Protocols: SFTP -
Protocols: TFTP -
Protocols: SSL/TLS -
Protocols: FXP -
Protocols: RSync -
Protocols: PPTP -
Protocols: L2TP -
Protocols: IPSec -
Protocols: BitTorrent -
Miscellaneous -
Package Contents: - TS-H2490FU-7302P-128G SAN/NAS Storage System
- 1 x Ethernet Cable
- 2 x Power Cords
- 96 x Flat Head Screws (for 2.5" HDD)
- Quick Installation Guide (QIG)
-
Warranty -
Limited Warranty: 5 Year
|
