Description
Condition:
New

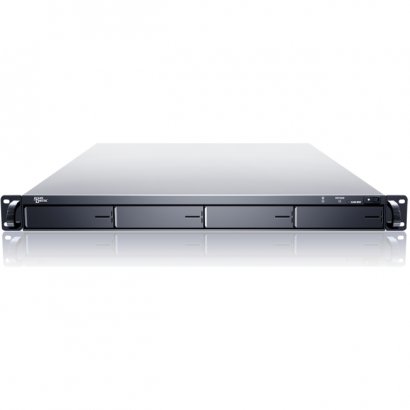

The EliteRAID ER104UT+B is a 4-bay hardware RAID 5 rackmount storage unit that utilizes high performance USB 3.0 and eSATA interfaces to provide over 200MB/s in performance. The included USB 3.0 is backwards compatible with the widely available USB 2.0 port, which is a convenient feature when both USB 3.0 and eSATA connections are unavailable. With built-in RAID 0, 1, 10, 3, 5+hot-spare and JBOD, the ER104UT+B provides hardware RAID redundancy protection against hard drive failures. A brand new RAID mode, CLONE or N-Way Mirror, is also introduced to replicate the saved data throughout each of the installed hard drives. The RAID engine is embedded within the enclosure and performs all RAID parity calculations to reduce CPU utilization from the host computer, RAID controller cards are no longer necessary.
| Product Type |
DAS Array
|
| Brand Name |
Sans Digital
|
| Manufacturer |
Sans Digital
|
| Product Model |
ER104UT+B
|
| Product Name |
EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black)
|
| Product Line |
EliteRAID
|
| Manufacturer Part Number |
KT-ER104UT+B
|
| Manufacturer Website Address |
http://www.sansdigital.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black)
- 1 x Power Cord
- 1 x eSATA Cable
- 1 x USB 3.0 Cable
- 1 x Set of Screws
- 1 x Quick Installation Manual & CD
|
| Number of Total Expansion Bays |
4
|
| Number of 3.5" Bays |
4
|
| Number of 5.25" Bays |
No
|
| Number of 2.5" Bays |
No
|
| Number of 2.5"/3.5" Bays |
No
|
| Total Hard Drive Capacity Supported |
12 TB
|
| Number of Hard Drives Supported |
4
|
| Number of Hard Drives Installed |
No
|
| Drive Interface |
Serial ATA
|
| Host Interface |
eSATA
USB 3.0
|
| Height |
1.7"
|
| Width |
19"
|
| Depth |
15"
|
| Rack Height |
1U
|
| Form Factor |
Rack-mountable
|
| Weight (Approximate) |
18 lb
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
DAS Array |
| Brand Name |
Sans Digital |
| Manufacturer |
Sans Digital |
| Product Model |
ER104UT+B |
| Product Name |
EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black) |
| Product Line |
EliteRAID |
| Manufacturer Part Number |
KT-ER104UT+B |
| Manufacturer Website Address |
http://www.sansdigital.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- EliteRAID ER104UT+B - 1U 4 Bay USB 3.0 / eSATA Hardware RAID 5 Rackmount (Black)
- 1 x Power Cord
- 1 x eSATA Cable
- 1 x USB 3.0 Cable
- 1 x Set of Screws
- 1 x Quick Installation Manual & CD
|
| I/O Expansions |
| Number of Total Expansion Bays |
4 |
| Number of 3.5" Bays |
4 |
| Number of 5.25" Bays |
No |
| Number of 2.5" Bays |
No |
| Number of 2.5"/3.5" Bays |
No |
| Storage |
| Total Hard Drive Capacity Supported |
12 TB |
| Number of Hard Drives Supported |
4 |
| Number of Hard Drives Installed |
No |
| Interfaces/Ports |
| Drive Interface |
Serial ATA |
| Host Interface |
eSATA |
| Host Interface |
USB 3.0 |
| Physical Characteristics |
| Height |
1.7" |
| Width |
19" |
| Depth |
15" |
| Rack Height |
1U |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
18 lb |
| Warranty |
| Limited Warranty |
3 Year |
|
