Description
Condition:
New

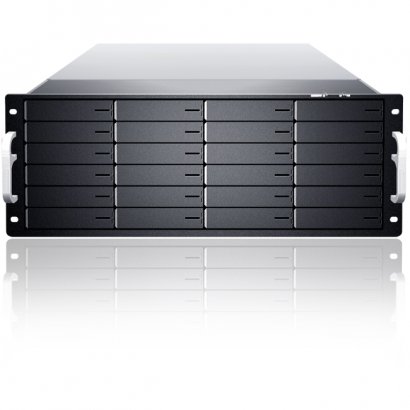

The EliteSTOR ES424X6+B is a 4U SAS 6G JBOD rackmount for high capacity storage solution. Utilizing the latest 6G SAS expander technology, the ES424X6+B provides over 24 Gb/s or 2400MB/s of bandwidth to fulfill the most demanding application. The ES424X6+B supports SATA or SAS 6Gbps hard drives or SSD and is backward compatible to 3Gbps SAS & SATA hard drives. By utilizing the latest SAS expander technology, the ES424X6+B supports up to 24 SAS or SATA drives using only one mini-SAS cable. A built-in SAS expansion port enables the system to connect up to 5 units or 120 HDD drives daisy-chained together. With a high performance RAID controller card such as Areca ARC-1880X or LSI 9280-8E, the ES424X6+B is capable of delivering over 1700MB/s in read and 1500MB/s write performance, doubling the existing 3G SAS expander bandwidth. System status information is provided by the LED, including hard drives, power supply and cooling fan status. All necessary hardware comes standard including mini-SAS cable, hard drives tray modules and built-in mounting rail. The ES424X6+B is an ideal storage expansion solution for servers or high performance video editing workstations.
| Product Type |
DAS Array
|
| Brand Name |
Sans Digital
|
| Manufacturer |
Sans Digital
|
| Product Model |
ES424X6+B
|
| Product Name |
EliteSTOR ES424X6+B DAS Array
|
| Product Line |
EliteSTOR
|
| Manufacturer Part Number |
KT-ES424X6+B
|
| Manufacturer Website Address |
http://www.sansdigital.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Package Contents |
- EliteSTOR ES424X6+B DAS Array
- Mini-SAS Cable
|
| Number of Total Expansion Bays |
24
|
| Number of 3.5" Bays |
24
|
| Number of 5.25" Bays |
No
|
| Number of 2.5" Bays |
No
|
| Number of 2.5"/3.5" Bays |
No
|
| Total Hard Drive Capacity Supported |
72 TB
|
| Total Solid State Drive Capacity Supported |
72 TB
|
| Total Solid State Drive Capacity Installed |
No
|
| Number of Hard Drives Supported |
24
|
| Number of Hard Drives Installed |
No
|
| Number of Solid State Drive Supported |
24
|
| Number of Solid State Drive Installed |
No
|
| Drive Interface |
Serial ATA/600
6Gb/s SAS
|
| Host Interface |
Mini-SAS
|
| Height |
7"
|
| Width |
19"
|
| Depth |
23"
|
| Rack Height |
4U
|
| Form Factor |
Rack-mountable
|
| Weight (Approximate) |
54 lb
|
| Limited Warranty |
3 Year
|
Specifications
| General Information |
| Product Type |
DAS Array |
| Brand Name |
Sans Digital |
| Manufacturer |
Sans Digital |
| Product Model |
ES424X6+B |
| Product Name |
EliteSTOR ES424X6+B DAS Array |
| Product Line |
EliteSTOR |
| Manufacturer Part Number |
KT-ES424X6+B |
| Manufacturer Website Address |
http://www.sansdigital.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Package Contents |
- EliteSTOR ES424X6+B DAS Array
- Mini-SAS Cable
|
| I/O Expansions |
| Number of Total Expansion Bays |
24 |
| Number of 3.5" Bays |
24 |
| Number of 5.25" Bays |
No |
| Number of 2.5" Bays |
No |
| Number of 2.5"/3.5" Bays |
No |
| Storage |
| Total Hard Drive Capacity Supported |
72 TB |
| Total Solid State Drive Capacity Supported |
72 TB |
| Total Solid State Drive Capacity Installed |
No |
| Number of Hard Drives Supported |
24 |
| Number of Hard Drives Installed |
No |
| Number of Solid State Drive Supported |
24 |
| Number of Solid State Drive Installed |
No |
| Interfaces/Ports |
| Drive Interface |
Serial ATA/600 |
| Drive Interface |
6Gb/s SAS |
| Host Interface |
Mini-SAS |
| Physical Characteristics |
| Height |
7" |
| Width |
19" |
| Depth |
23" |
| Rack Height |
4U |
| Form Factor |
Rack-mountable |
| Weight (Approximate) |
54 lb |
| Warranty |
| Limited Warranty |
3 Year |
|
