Description
Condition:
New

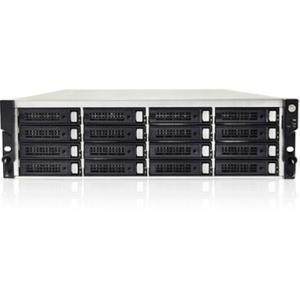

The AccuRAID AR316I6V is a 3U 16-bay quad channel (6x GbE) iSCSI to SAS/SATA RAID subsystem with single controller. With built-in 6 x 1Gb Ethernet ports supporting independent access, fail-over or load-balancing (802.3ad port trunking, LACP), AR316I6V is capable of composing a high performance SAN environment with a fraction of the cost of Fibre Channel RAID storage systems. Supporting RAID 0, 1, 1+0, 3, 5, 6, 30, 50, 60 and JBOD, with global or dedicated hot spare disks, multiple hard drive failure could be protected without downtime or data loss. The built-in powerful 64-bit RAID processor provides high performance through-put. The built-in Snapshot feature provides point-in-time copy of saved data without relying on the host software. Management is available via Web and Secure Web (HTTPS), SSH telnet or serial console, with built-in event notification via e-mail or SNMP trap. Redundant power supplies, cooling fans and controllers are part of the modularized design to allow redundancy as well as off-self spare parts to eliminate downtime. To increase the return of investment, AR316I6V supports both SAS and SATA drives, and could be expanded by adding up to 3 additional SAS/SATA JBOD units, providing solutions up to 64-bays or 196TB in total storage capacity. Intended to provide storage solution for IT and vitalization server computing with VMware vSphere or, Microsoft Hyper-V or Citrix with SCSI-3 persistent target support, the AR316I6V is a perfect solution for Storage Area Network needs in IT and other applications. AccuRAID - 3U 16 Bay 6xGbE iSCSI to SAS/SATA RAID Rackmount System
Specifications
General Information Product Type: SAN ArrayBrand Name: Sans DigitalManufacturer: Sans DigitalProduct Model: AR316I6VProduct Name: AccuRAID AR316I6V - 3U 16 Bay 6xGbE iSCSI to SAS/SATA RAID Rackmount SystemProduct Line: AccuRAIDManufacturer Part Number: ST-SAN-AR316I6VManufacturer Website Address: http://www.sansdigital.comMiscellaneous Green Compliant: YesGreen Compliance Certificate/Authority: RoHSPackage Contents: - AccuRAID AR316I6V - 3U 16 Bay 6xGbE iSCSI to SAS/SATA RAID Rackmount System
- 1 x Rail Bracket
- 2 x Power Cords
- 1 x Serial Cable
- 1 x Ethernet Cable
- Hard Drive Mounting Screws and trays
- 1 x CD and User Guide
Network & Communication Ethernet Technology: Gigabit EthernetI/O Expansions Number of Total Expansion Bays: 16Number of 3.5" Bays: 16Interfaces/Ports SAN Interface: iSCSIDrive Interface: Serial Attached SCSI (SAS)Drive Interface: Serial ATAStorage Total Hard Drive Capacity Supported: 8 TBNumber of Hard Drives Supported: 16Physical Characteristics Height: 5.5"Width: 19"Depth: 20.5"Rack Height: 3UForm Factor: Rack-mountableWeight (Approximate): 44 lbControllers Number of Controllers: 1RAID Levels: 0, 1, 3, 5, 6, 30, 50, 60, 0+1, JBODController Type: iSCSIWarranty Limited Warranty: 3 Year
AR316I6V
|
