Allows you to select and switch between any of the 2 source devices (1 HDMI & 1 VGA) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio output and IR control Scales and switches an HDMI or VGA input to an HDBaseT output Features manual or auto device switching options Output resolution can be selected between 720p, 4K @60Hz YUV 4:2:0 or 4K @30Hz YUV 4:4:4 Transmits signals via HDBaseT technology up to 40m (131ft) at 4K or 70m (230ft) at 1080p Supports Bi-directional IR extension, RS232 control, advanced EDID management Supports bidirectional PoH, the HDBaseT receiver can be powered by this KIT, or this KIT can be powered by receiver via HDBaseT port Compliant with HDMI 1.4 and HDCP 2.2 on HDMI output

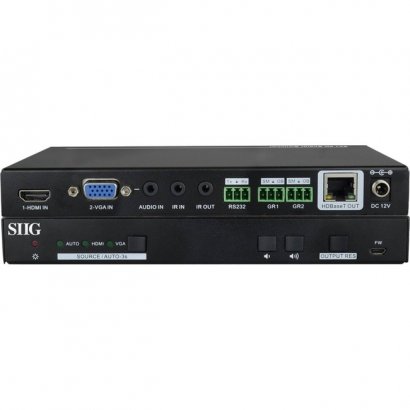

HDMI/VGA 2x1 HDBaseT 4K Scaler Switcher
