Allows you to select and switch between any of the 9 source devices (1 DisplayPort, 5 HDMI, 2 VGA, 1 HDBaseT) to display on a HDMI display through single economical CAT5e/6 cable up to 70 meters (70m-1080p/40m-4K) using advance HDBaseT technology with audio and IR control Scales and switches up to 9 inputs of different formats to an HDMI and HDBaseT outputs simultaneously Output resolution can be selected between720p, 4K @60Hz YUV 4:2:0, or 4K @30Hz YUV 4:4:4 Receives signals via HDBaseT Input up to 40m (131ft) at 4K or 70m (230ft) at 1080p Transmits signals via HDBaseT Output up to 70m (230ft) at 4K or 100m (328ft) at 1080p Device switching controllable via push buttons, IR remote, RS232 and GUI Supports Bi-directional IR control and RS232 pass-through

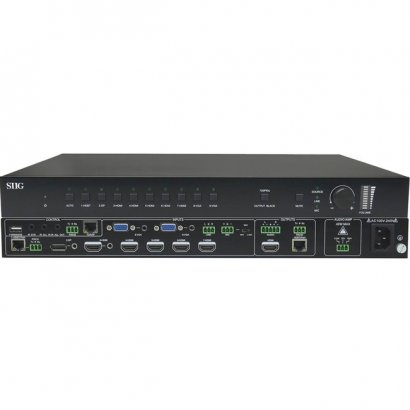

9x1 HDBaseT 4K Scaler Switcher
