Extends HDMI audio/video signals through IP networks up to 394ft (120m), matrix and video wall configurable on the fly HDMI 2.0a and HDCP 2.2 compliant Supports HDMI input up to 4Kx2K@60Hz YUV 4:4:4 8bit, HDMI output up to 4Kx2K@30Hz Flexible and scalable video broadcasting by IGMP Gigabit Ethernet Router/Switch Supports 4K signals including High Dynamic Range (HDR), PoE, Bi-directional IR path, and Video Wall. Due to the video compression, some distortion may occur in HDR mode Supports One-to-one, One-to-many, and Many-to-many broadcasting architecture Easy DIP switch matching for multi-casting group configuration Supports full frequency IR signal from 20KHz to 60KHz Full Duplex RS-232 control up to 115,200 bps Supports 180° and 270° clockwise image rotation Designed to work with HDMI 2.0 Video Wall Over IP Multicast System - Transmitter, part # CE-H25211-S1 sold separately, and HDMI 2.0 Video Wall Over IP Multicast System - Controller, part # CE-H25411-S1 sold separately

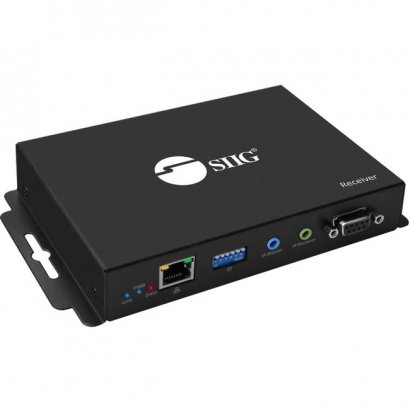

HDMI 2.0 Video Wall Over IP Multicast System - Receiver
