Distributes 4K HDMI video/audio signals from one HDMI source to four HDMI displays with EDID management and video downscaling while maintaining signal quality Distributes HDMI video and audio from a single source to 4 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth Supports resolutions up to 4K@60Hz (YUV 4:4:4 8-bit), 3D, HDR, 36-bits Deep Color, Dolby Vision, and LPCM 7.1, Dolby TrueHD, Dolby digital Plus, Dolby Atmos, and DTS-HD Master Audio Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Note: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz Captures game play in 1080p while playing in 4K - use Elgato or other game capture devices to record game play in 1080p while simultaneously playing in 4K High quality materials with metal housing extend the stability and durability, allowing for long hours of operation Built-in EDID management and firmware update mechanisms offer wide range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays and expands compatibility into the future. Firmware upgradeable via Mini USB port for expanded compatibility Low heat generation with durable metal housing provides excellent heat dissipation and minimizes EMI/RFI interference for stable performance and long life span Individual LED indicators for power and signal allow for easy and quick status recognition Notes: 4K@30Hz monitors will display at 1080p@60Hz when the source content is 4K@60Hz EDID Copy and Auto mode supports 4K downscaling to 1080p For HDCP 2.2 protected 4K source signals, if the TV/Display supports HDCP 2.2 it will display at 4K resolution, otherwise, the TV will display at 1080p HDR, Dolby Vision, Dolby Atmos and 7.1ch supported via EDID Copy mode only

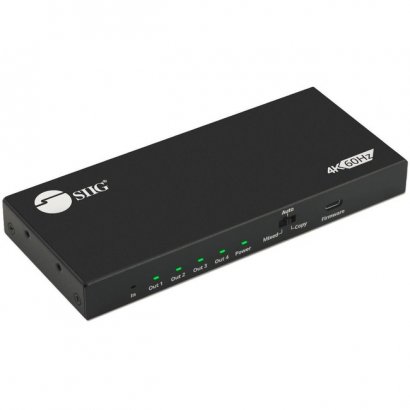

4 Port HDMI 2.0 HDR Splitter with EDID and Downscaler
