Description
Condition:
New

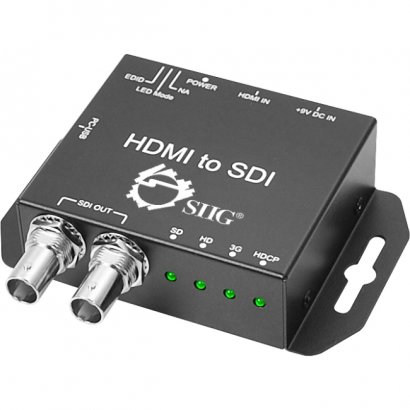

SIIG's HDMI to 3G-SDI Converter broadcasts HDMI signals from one HDMI source to two 3G-SDI outputs. This HDMI to 3G-SDI converter supports link speeds up to 2.25Gb/s at a clock rate of 225 MHz, HD formats up to 1080p24, 25, 50 & 60 as well as 525i & 625i SD formats. This converter's metal housing provides superior RF shielding for error free data transmission plus efficient heat dissipation for reliable performance and long life. This HDMI to 3G-SDI Converter is the easiest and most efficient solution for transmission of digital video and audio signals from a single HDMI source to multiple high definition displays making video and audio more affordable and accessible.The HDMI to 3G-SDI Converter is HDMI 1.3a and DVI 1.0 compliant. It is also FCC approved, meets RoHS hazardous materials standards and is backed by SIIG's limited 3-year warranty.
| Product Type |
Video Switchbox
|
| Brand Name |
SIIG
|
| Manufacturer |
SIIG, Inc
|
| Product Name |
HDMI to 3G-SDI Converter
|
| Manufacturer Part Number |
CE-SD0311-S1
|
| Manufacturer Website Address |
http://www.siig.com
|
| Green Compliant |
Yes
|
| Green Compliance Certificate/Authority |
RoHS
|
| Country of Origin |
Taiwan
|
| Package Contents |
- HDMI to 3G-SDI Converter
- Power Adapter
- User's Manual
|
| Number of HDMI Inputs |
1
|
| HDMI In |
Yes
|
| Number of Displays Supported |
2
|
| Number of Input Devices Supported |
1
|
| Device Supported |
Computer
|
| Height |
1.1"
|
| Width |
4.1"
|
| Depth |
1.1"
|
| Form Factor |
Wall Mountable
|
| Weight (Approximate) |
8 oz
|
| Limited Warranty |
3 Year Limited
|
Specifications
| General Information |
| Product Type |
Video Switchbox |
| Brand Name |
SIIG |
| Manufacturer |
SIIG, Inc |
| Product Name |
HDMI to 3G-SDI Converter |
| Manufacturer Part Number |
CE-SD0311-S1 |
| Manufacturer Website Address |
http://www.siig.com |
| Miscellaneous |
| Green Compliant |
Yes |
| Green Compliance Certificate/Authority |
RoHS |
| Country of Origin |
Taiwan |
| Package Contents |
- HDMI to 3G-SDI Converter
- Power Adapter
- User's Manual
|
| Interfaces/Ports |
| Number of HDMI Inputs |
1 |
| HDMI In |
Yes |
| Technical Information |
| Number of Displays Supported |
2 |
| Number of Input Devices Supported |
1 |
| Device Supported |
Computer |
| Physical Characteristics |
| Height |
1.1" |
| Width |
4.1" |
| Depth |
1.1" |
| Form Factor |
Wall Mountable |
| Weight (Approximate) |
8 oz |
| Warranty |
| Limited Warranty |
3 Year Limited |
|
