Description
Condition:
New

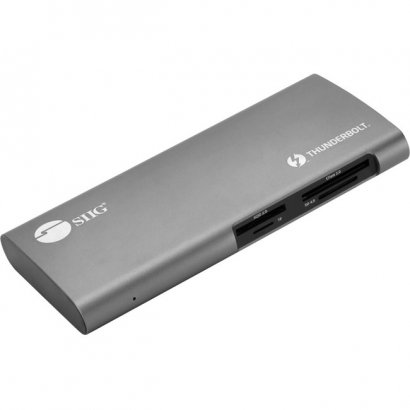

Advanced Titan Ridge Thunderbolt 3 docking station adds multiple connectivity options to your Titan Ridge Thunderbolt 3 or USB-C DP Alt enabled computer, notebook, and laptop POWERFUL WORKSTATION: Expand multiple connectivity ports to your Thunderbolt 3 enabled MacBook Pro or Windows. Provides one 8K Thunderbolt 3 (Titan Ridge) port with 60W power delivery or one 8K DisplayPort 1.4 port, three USB 3.1 Gen 1 ports, one RJ45 Gigabit Ethernet port, and multi-slot memory card reader/writer SUITABLE FOR PROFESSIONAL PHOTOGRAPHER: With your Titan Ridge Thunderbolt 3 laptop, allows one 8K video output and most popular memory cards, meets the demand of professional and amateur photographers, improving work efficiency, read/write to 4 different memory cards simultaneously with only one docking MEMORY CARD READER INTERFACE: Supports the latest memory cards such as UHS-II SD 4.0, CFast 2.0, XQD 2.0 60W POWER DELIVERY: Up to 60W Power Delivery through Thunderbolt 3 port to charge your laptop. Includes 120W power adapter to provide enough power for Power Delivery and your connected peripherals 8K HIGH RESOLUTION: Allows a single 8K resolution from a single Titan Ridge Thunderbolt 3 or USB-C DisplayPort 1.4 port to experience the clearest image output Thunderbolt 3 allows connecting two 4K Ultra HD displays simultaneously through a DisplayPort and Thunderbolt 3 port SUPER HIGH-SPEED DATA TRANSFER: Thunderbolt 3 port allows data transfer speeds up to 40Gb/s and daisy chaining of Thunderbolt devices, such as monitors, external hard drives and RAID storage, plus three USB 3.1 Gen1 Type-A ports support data transfer rates up to 5Gbps ALUMINUM COOLING SOLUTION: Premium aluminum housing provides efficient heat dissipation for reliable performance and long life Docking Station
Specifications
-
General Information -
Product Type: Docking Station -
Brand Name: SIIG -
Manufacturer: SIIG, Inc -
Product Name: Docking Station -
Manufacturer Part Number: JU-DK0G11-S1 -
Manufacturer Website Address: http://www.siig.com -
Miscellaneous -
Environmentally Friendly: Yes -
Environmental Certification: RoHS -
Country of Origin: China -
Compatibility: Apple MacBook Pro Notebook -
Package Contents: - Docking Station
- Power Adapter
- Power Cord
- Thunderbolt 3 Cable
- User Reference Guide
-
Interfaces/Ports -
Network (RJ-45): Yes -
DisplayPort: Yes -
Number of DisplayPort Outputs: 1 -
Total Number of USB Ports: 5 -
Thunderbolt: Yes -
USB Type-C: Yes -
USB Type-C Detail: 1 x 24-pin, USB-C, Thunderbolt 3 (With PD Charging), Female, Source connection / 1 x 24-pin, Thunderbolt 3 USB-C, Female, Output -
Number of USB 3.1 Gen 1 Type-A Ports: 3 -
Host Interface: USB Type C -
Power Description -
Maximum Power Supply Wattage: 60 W -
Physical Characteristics -
Height: 1" -
Width: 7.9" -
Depth: 3.5" -
Weight (Approximate): 9.44 oz -
Technical Information -
Connectivity Technology: Wired -
Device Supported: Desktop PC/Notebook/Monitor -
Warranty -
Limited Warranty: 2 Year
|
